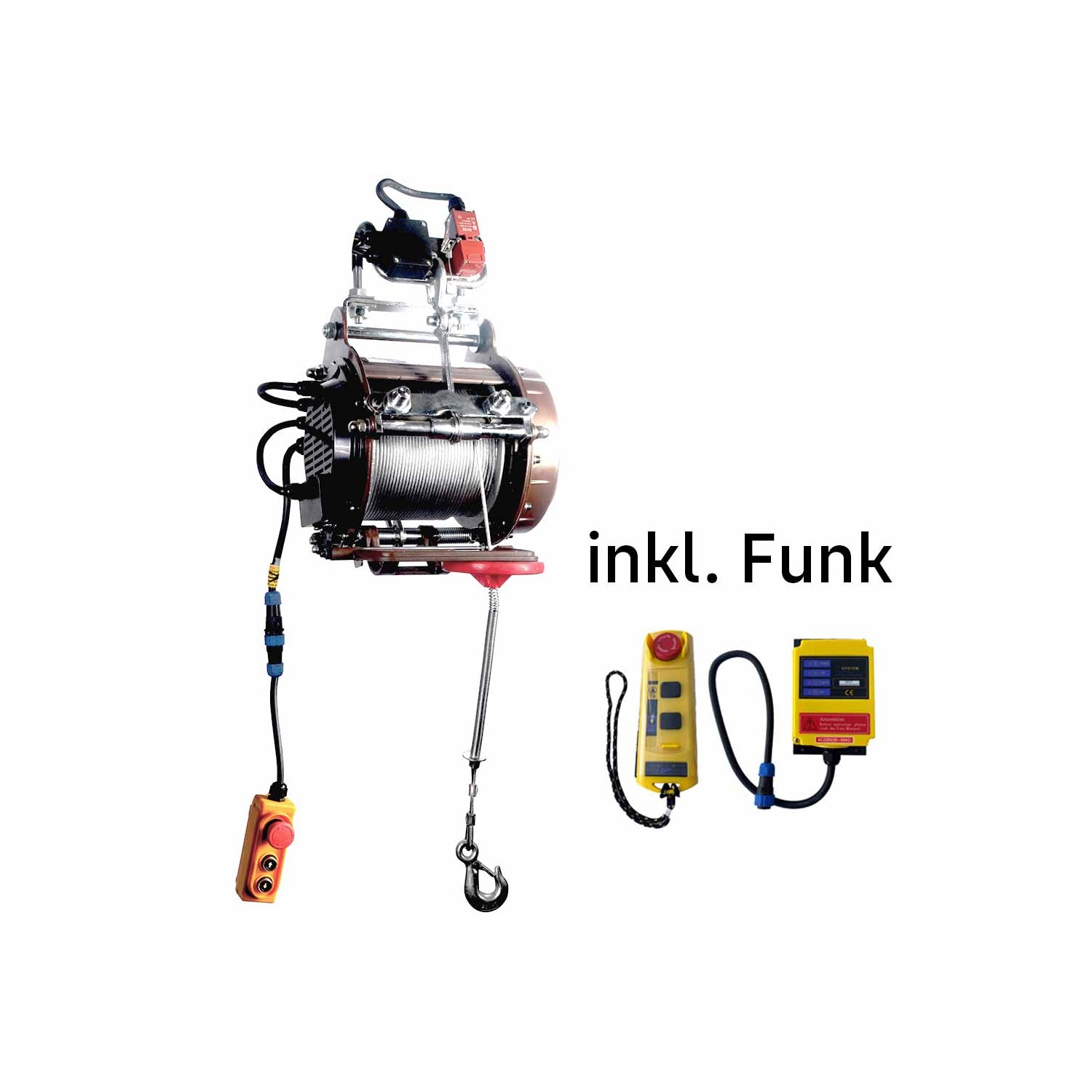

Warrior Scaffold Hoist 800kg 230V with wireless remote

Item number: WW220VSH800WRC

Produktgewicht: 36,20 Kg

Category: Seilwinde mit Funkfernbedienung


799,00 €

including 19% VAT. , plus shipping (Paket)

Shipping time: 1 - 2 workdays

piece


Unser für Sie empfohlenes Bundle:

Warrior Scaffold Hoist 800kg 230V with wireless remote
Kabelverlängerung 10m für WARRIOR Hebezeuge mit AIR-SOCKET-System
Kabelverlängerung 5m für WARRIOR Hebezeuge mit AIR-SOCKET-System
Rotary Hoist Frame for Professional Hoist Winch Black Motion® 600kg 750mm
800kg Stahlseil für WARRIOR Industrie Hebezug 220VSH800 32m
+ 799,00 €
+ 129,90 €
+ 79,90 €
+ 44,90 €
+ 89,00 €
Gesamtpreis 1,142,70 € *

Next Generation Scaffold Hoist with wireless remote control

220V model- 800kg Capacity

The NEW Warrior 2014 Patented designed poratble hoist, its unique design and elegant shape which hooks to scaffolding and makes the job of getting building materials etc to upper storeys and roofs so much easier and safer.

Suspending style with key interlock protection hook allows easy installation and safe working. New auto rope winding and direction exchange device allows you to align the rope safely increasing the life of the rope by over 30.000 times.
An ideal hoist for builders and roofers alike with 30m of usable cable. Ideal liftingcomponent for scaffolding and beams. High strength carbon construction with powder coated finish gives a strong and durable hoist.

This hoist conforms to EN 14492:2 utilising a dynamic brake design for both static and dynamic loading with upper and lower limit switches. Thermal overload protection on the motor for added safety.

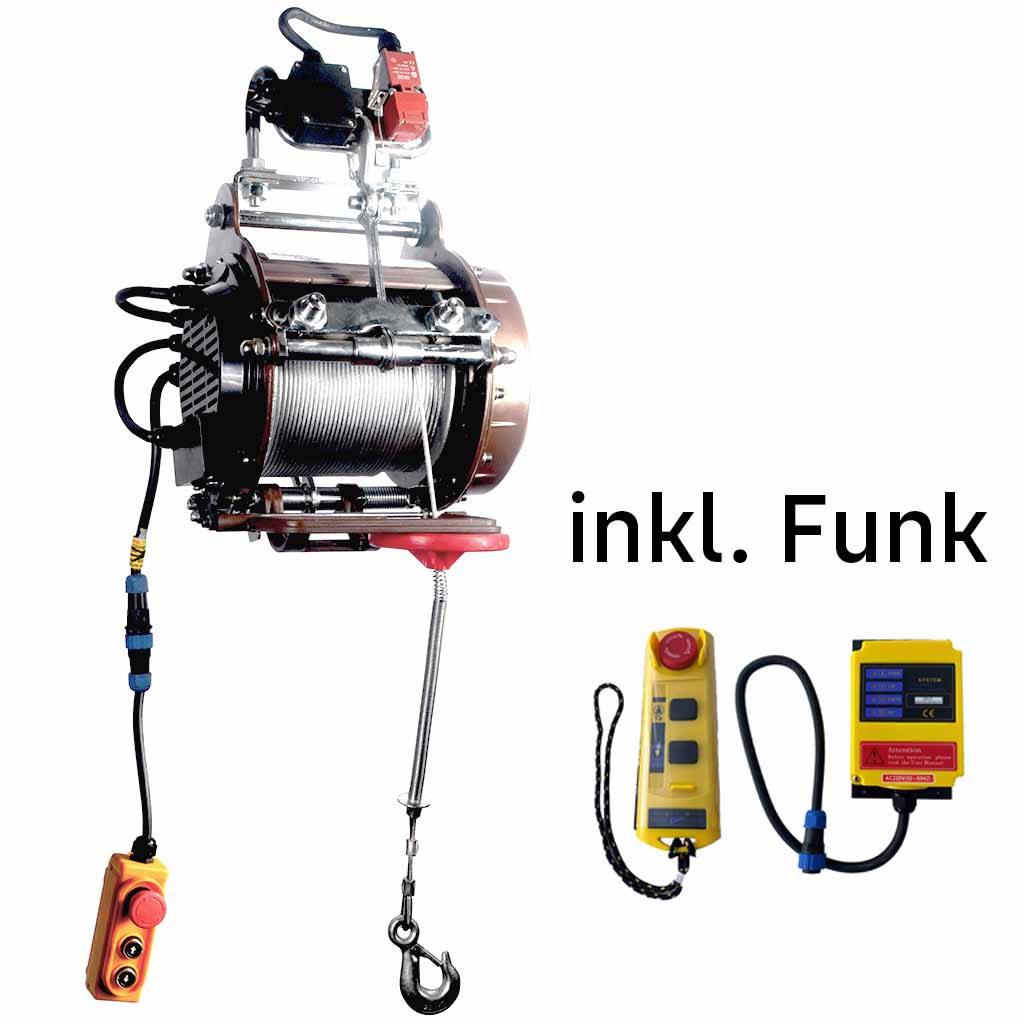

Including Wireless Remote System.

TÜV/GS approved

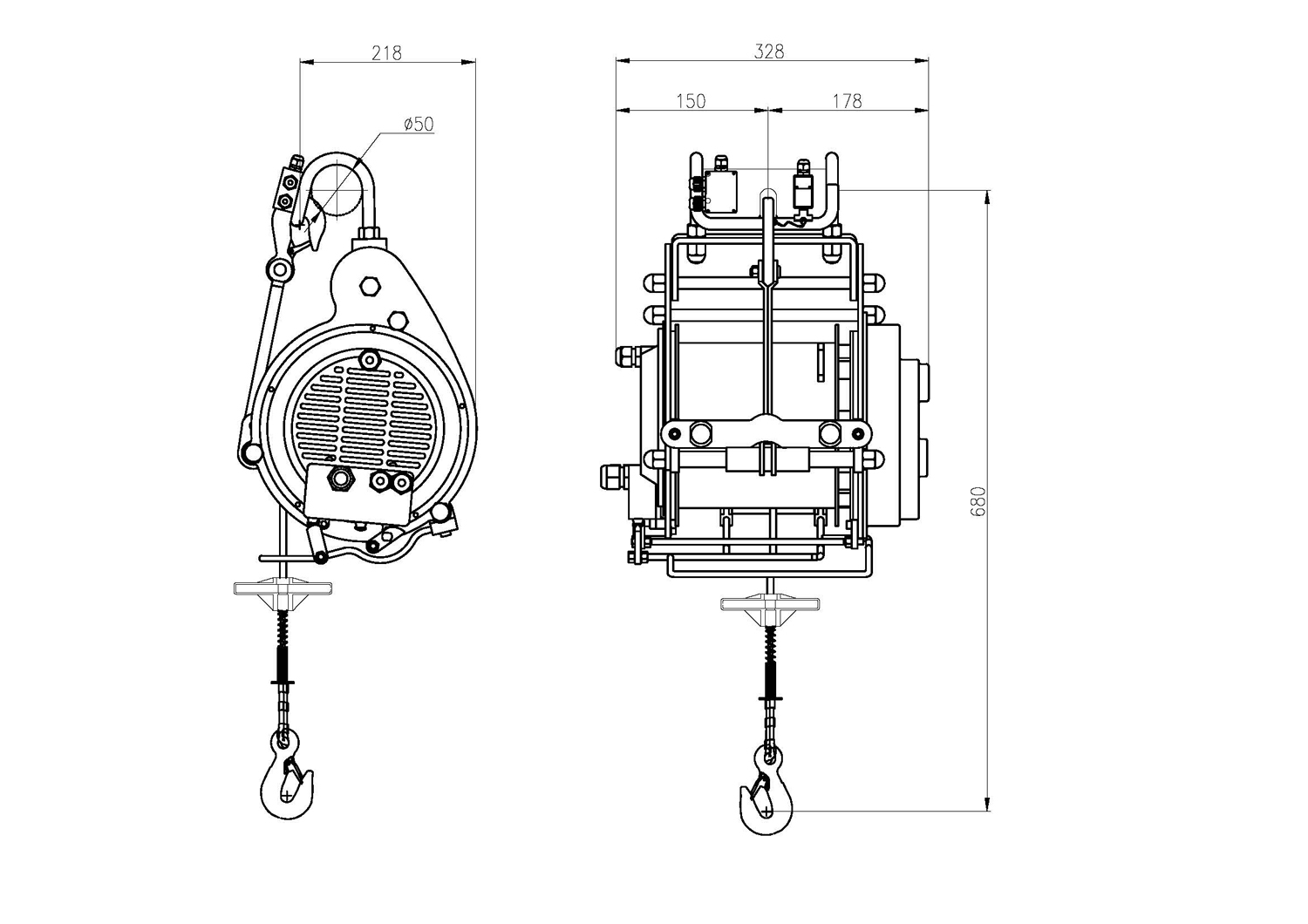

Box Dimensions (LxBxH): 530x430x480 mm

Special Features:

  • Unique design and elegant shape
  • Suspending style with protection hook allows for convenient and reliable mounting

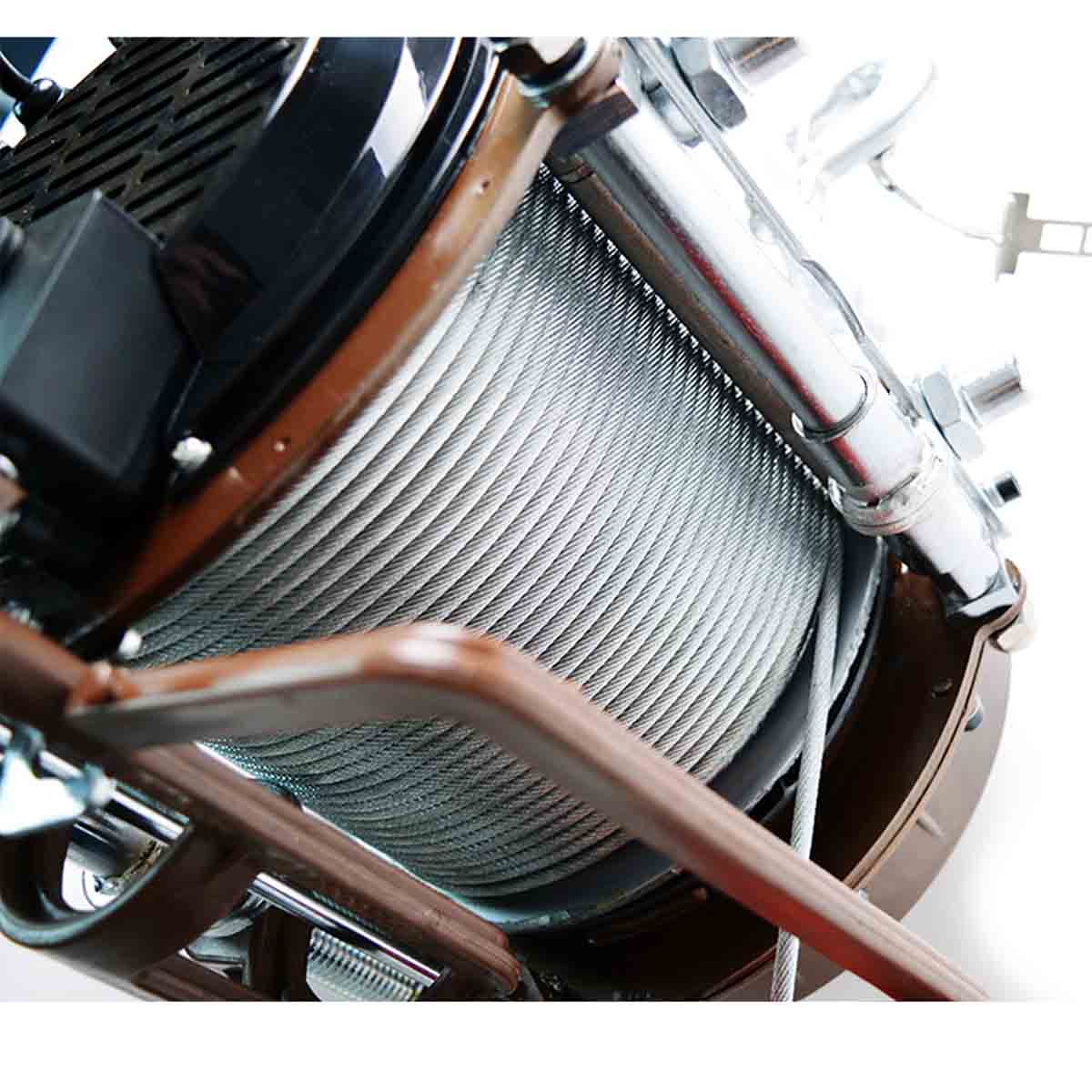

  • The unique automatic rope winding system lines up the steel rope with no mess and increases the lifetime by 30.000 times
  • Special rope drum for a maximum of 40m steel rope. Extension steel rope is available.
  • Easily change the steel rope without needing to disassemble.
  • The Pulley Hook allows double lifting capacity.
  • The Up & Down limiting device meets European Standard EN-14492-2:2006
  • New designed bearing system allows free rotating of the cable drum and increases the lifetime of the hoist.
  • Easily lubricate via the grease nipple.

Modelle:

Model 220VSH800
Voltage 220V
Max Lifting cap. (Single/Double Line) 400/800 kg
Cable Dia & Length (steel with swivel hook) 5.6mm x 30m

Specifications:

Line Speed 12m/ min.

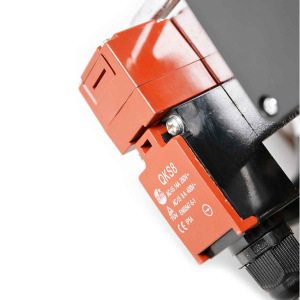

Limit Switch for Safety Upper & Lower
IP Rating 65


Shipping weight: 37,20 Kg
Product weight: 36,20 Kg
