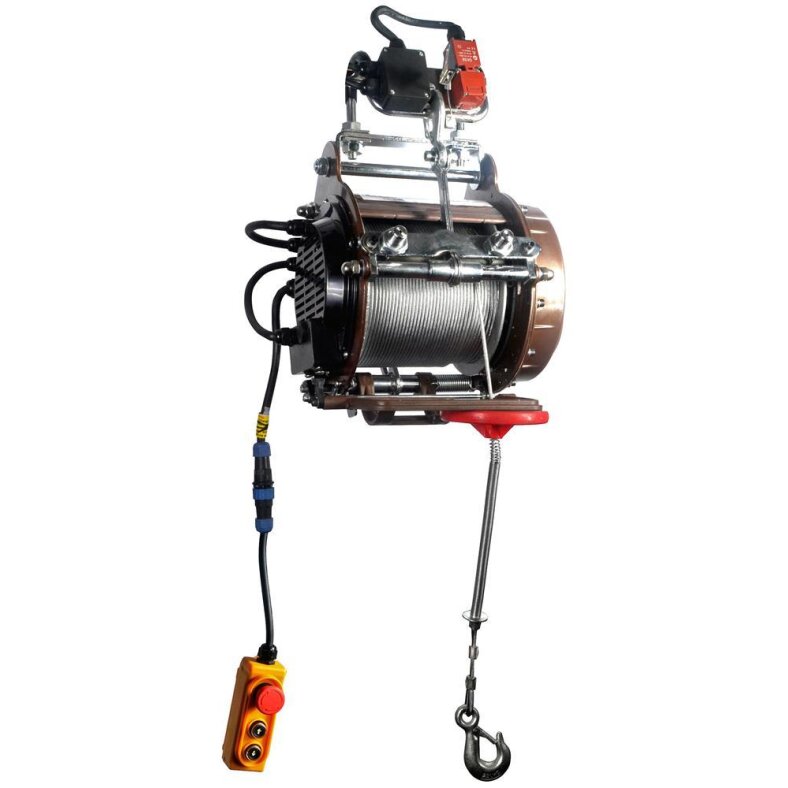

Warrior Industry hoist crane winch hoist 500kg 230V according to EN 14492: 2

Warrior Industry hoist crane winch hoist 500kg 230V according to EN 14492: 2

SKU: 220VSH500
GTIN: 5060423982692
Category: Winches

549,99 €

incl. 19% VAT , plus

Item out of stock

Next Generation Scaffold Hoist

220V model- 500kg Capacity

The NEW Warrior 2014 Patented designed poratble hoist, its unique design and elegant shape which hooks to scaffolding and makes the job of getting building materials etc to upper storeys and roofs so much easier and safer.

Suspending style with key interlock protection hook allows easy installation and safe working. New auto rope winding and direction exchange device allows you to align the rope safely increasing the life of the rope by over 30.000 times.
An ideal hoist for builders and roofers alike with 30m of usable cable. Ideal liftingcomponent for scaffolding and beams. High strength carbon construction with powder coated finish gives a strong and durable hoist.

This hoist conforms to EN 14492:2 utilising a dynamic brake design for both static and dynamic loading with upper and lower limit switches. Thermal overlaod protection on the motor for added safety.

Including Wireless Remote System.

Special Features:

Unique design and elegant shape
Suspending style with protection hook allows for convenient and reliable mounting
The unique automatic rope winding system lines up the steel rope with no mess and increases the lifetime by 30.000 times
Special rope drum for a maximum of 40m steel rope. Extension steel rope is available.
Easily change the steel rope without needing to disassemble.
The Pulley Hook allows double lifting capacity.
The Up & Down limiting device meets European Standard EN-14492-2:2006
New designed bearing system allows free rotating of the cable drum and increases the lifetime of the hoist.
Easily lubricate via the grease nipple.

Modelle:

Model	220VSH500	220VSH800
Voltage	220V	220V
Max Lifting cap. (Single/Double Line)	250/500 kg	400/800 kg
Cable Dia & Length (steel with swivel hook)	4.2mm x 30m	5.6mm x 30m

Specifications:

Line Speed 12m/ min.

Limit Switch for Safety Upper & Lower

IP Rating 67

Optional Wireless Remote System

Lifting force (without deflection):	101 - 250 kg
Max. Lifting height:	31 - 40 m
Lifting speed:	1 - 15 m / min
Voltage:	230 V
Application:	Private Commercial
Brand:	Warrior
Radio remote control including:	No
Shipping weight:	37,00 kg
Item weight:	36,00 kg
