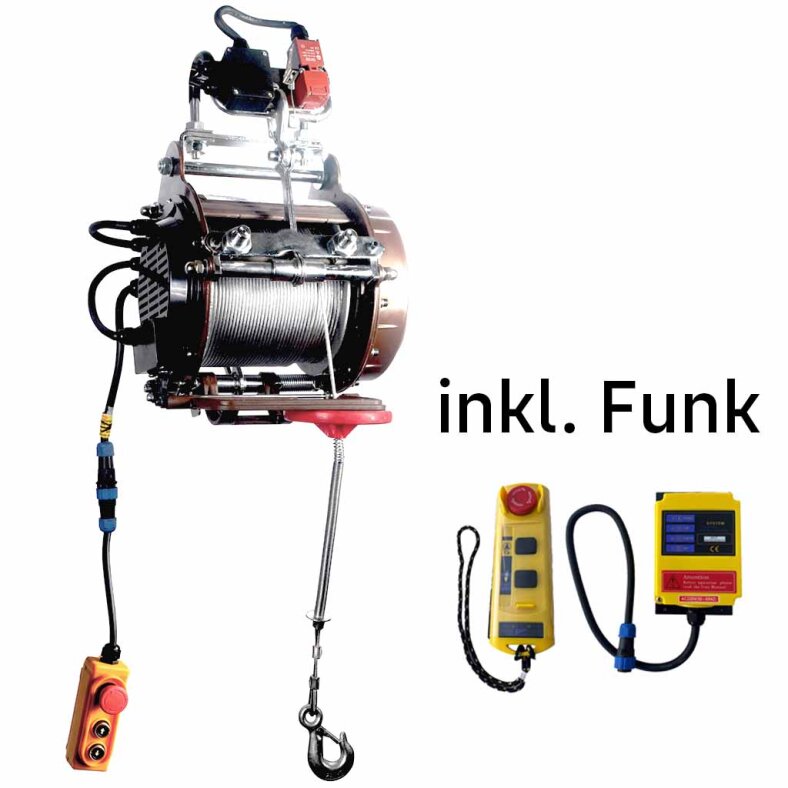

WARRIOR Scaffold Hoist 500kg 220V with wireless remote

Item number: WW220VSH500WRC

Produktgewicht: 36,20 Kg

Category: Seilwinde mit Funkfernbedienung


699,00 €

including 19% VAT. , plus shipping (Paket)

Shipping time: 1 - 2 workdays

piece


Unser für Sie empfohlenes Bundle:

WARRIOR Scaffold Hoist 500kg 220V with wireless remote
DELTALOCK Anker Schäkel 4.75 t mit Bolzen mit Schraubmutter
Kabelverlängerung 10m für WARRIOR Hebezeuge mit AIR-SOCKET-System
Kabelverlängerung 5m für WARRIOR Hebezeuge mit AIR-SOCKET-System
Rotary Hoist Frame for Professional Hoist Winch Black Motion® 600kg 750mm
+ 699,00 €
+ 8,01 €
+ 129,90 €
+ 79,90 €
+ 44,90 €
Gesamtpreis 961,71 € *

Next Generation Scaffold Hoist

220V model- 500kg Capacity

The NEW Warrior 2014 Patented designed poratble hoist, its unique design and elegant shape which hooks to scaffolding and makes the job of getting building materials etc to upper storeys and roofs so much easier and safer.

Suspending style with key interlock protection hook allows easy installation and safe working. New auto rope winding and direction exchange device allows you to align the rope safely increasing the life of the rope by over 30.000 times.
An ideal hoist for builders and roofers alike with 30m of usable cable. Ideal liftingcomponent for scaffolding and beams. High strength carbon construction with powder coated finish gives a strong and durable hoist.
This hoist conforms to EN 14492:2 utilising a dynamic brake design for both static and dynamic loading with upper and lower limit switches. Thermal overlaod protection on the motor for added safety.
Including Wireless Remote System.

Special Features:

  • Unique design and elegant shape
  • Suspending style with protection hook allows for convenient and reliable mounting
  • The unique automatic rope winding system lines up the steel rope with no mess and increases the lifetime by 30.000 times
  • Special rope drum for a maximum of 40m steel rope. Extension steel rope is available.
  • Easily change the steel rope without needing to disassemble.
  • The Pulley Hook allows double lifting capacity.
  • The Up & Down limiting device meets European Standard EN-14492-2:2006
  • New designed bearing system allows free rotating of the cable drum and increases the lifetime of the hoist.
  • Easily lubricate via the grease nipple.



Model 220VSH500
Voltage 220V
Max Lifting cap. (Single/Double Line) 250/500 kg
Cable Dia & Length (steel with swivel hook) 4.2mm x 40m

Specifications:

Line Speed 12m/ min.
Limit Switch for Safety Upper & Lower
IP Rating 65


Shipping weight: 37,20 Kg
Product weight: 36,20 Kg
