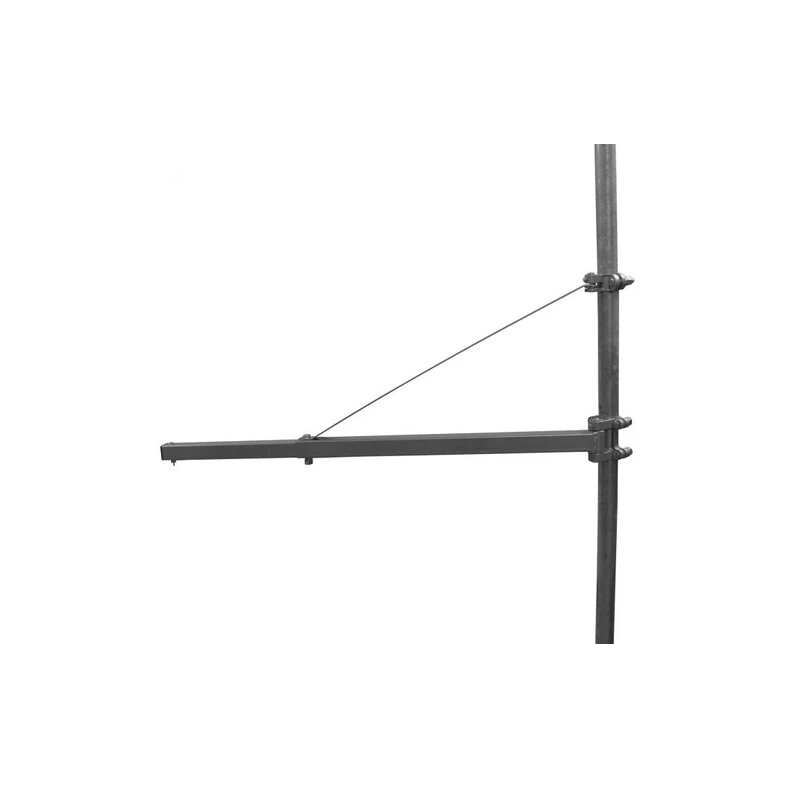

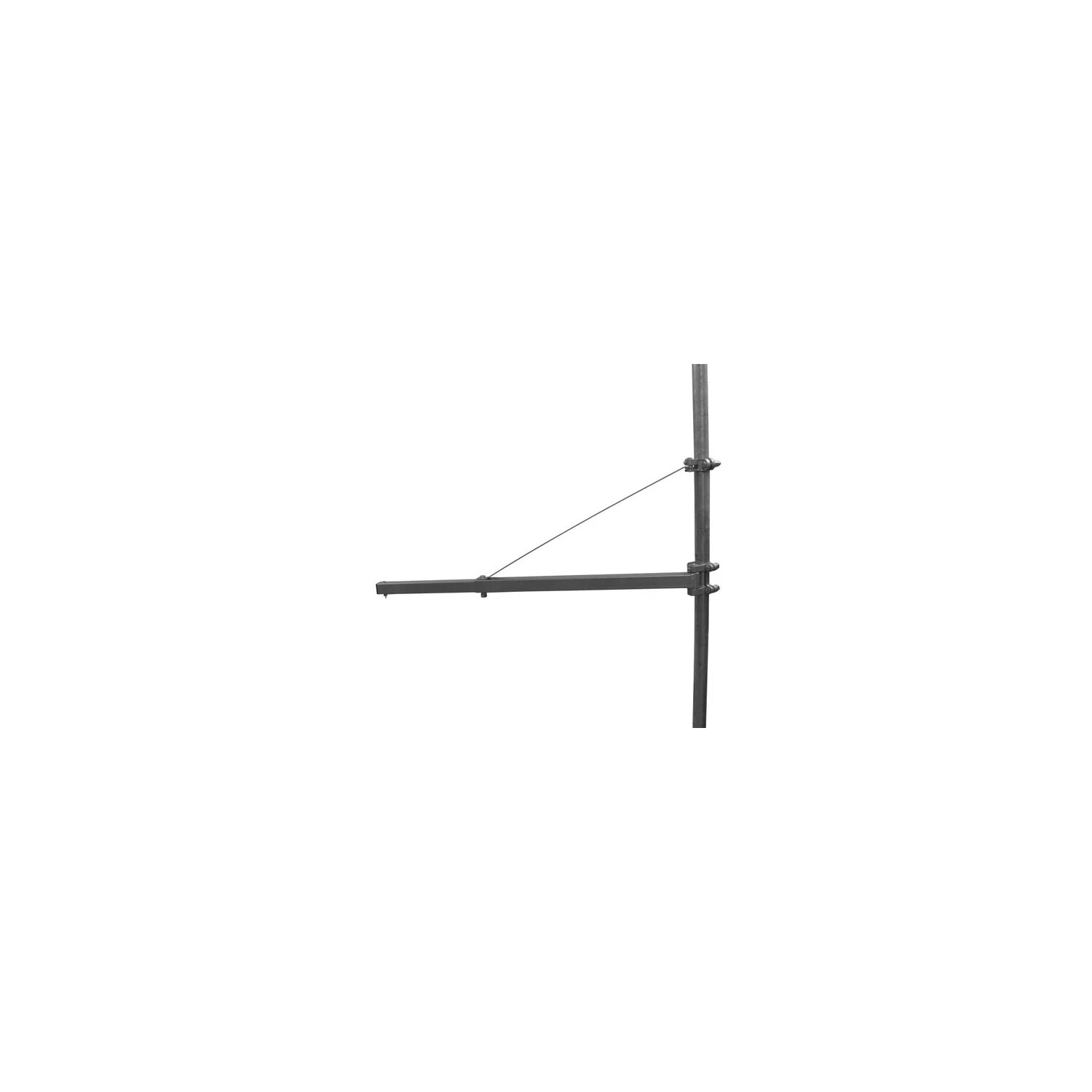

Rotary Hoist Frame for Black Motion® Hoist Winches

This compact, general purpose Rotary hoist frame is ideal for all manner of lifting application. Easy to install, it is supplied with special fixing clamps for circular scaffolding. Supplied with a square section beams for any electric hoist up to 600kgs capacity.

• Original Black Motion® Product
• Reliable and easy handling
• Easy to set up
• quick assembly/mounting
• Routed hanging weight: 600 kg at rated Lifting length: 750 mm
• Angle of rotation: -45° - +45°
• Dimensions of extension arm: Height 6 cm, width 4 cm, length 75cm
• Weight: Net 9.75 kg, Gross 10.25 kg
• Rec. Diameter of vertical mounting pipe: Ø48mm
• TÜV, GS approved
