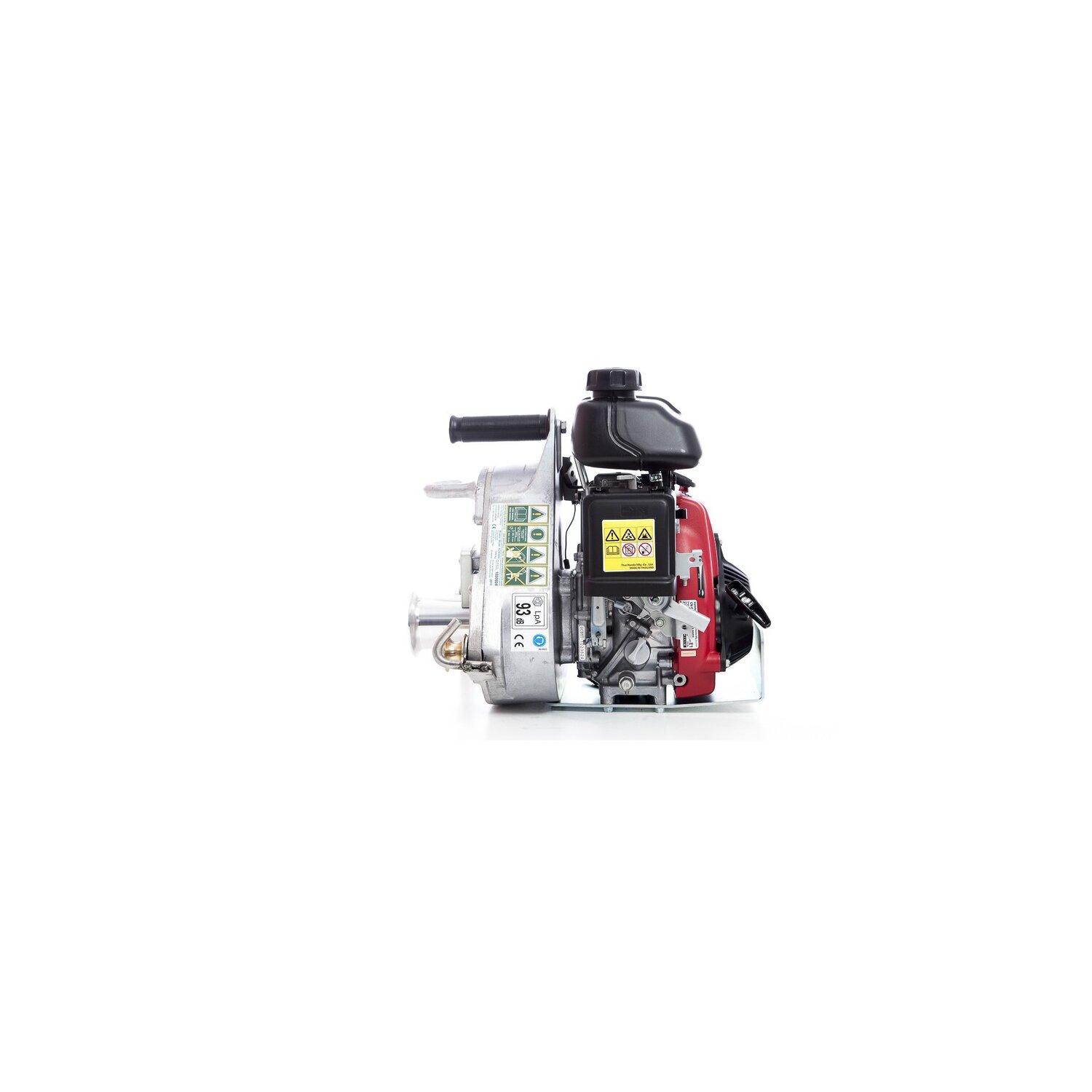

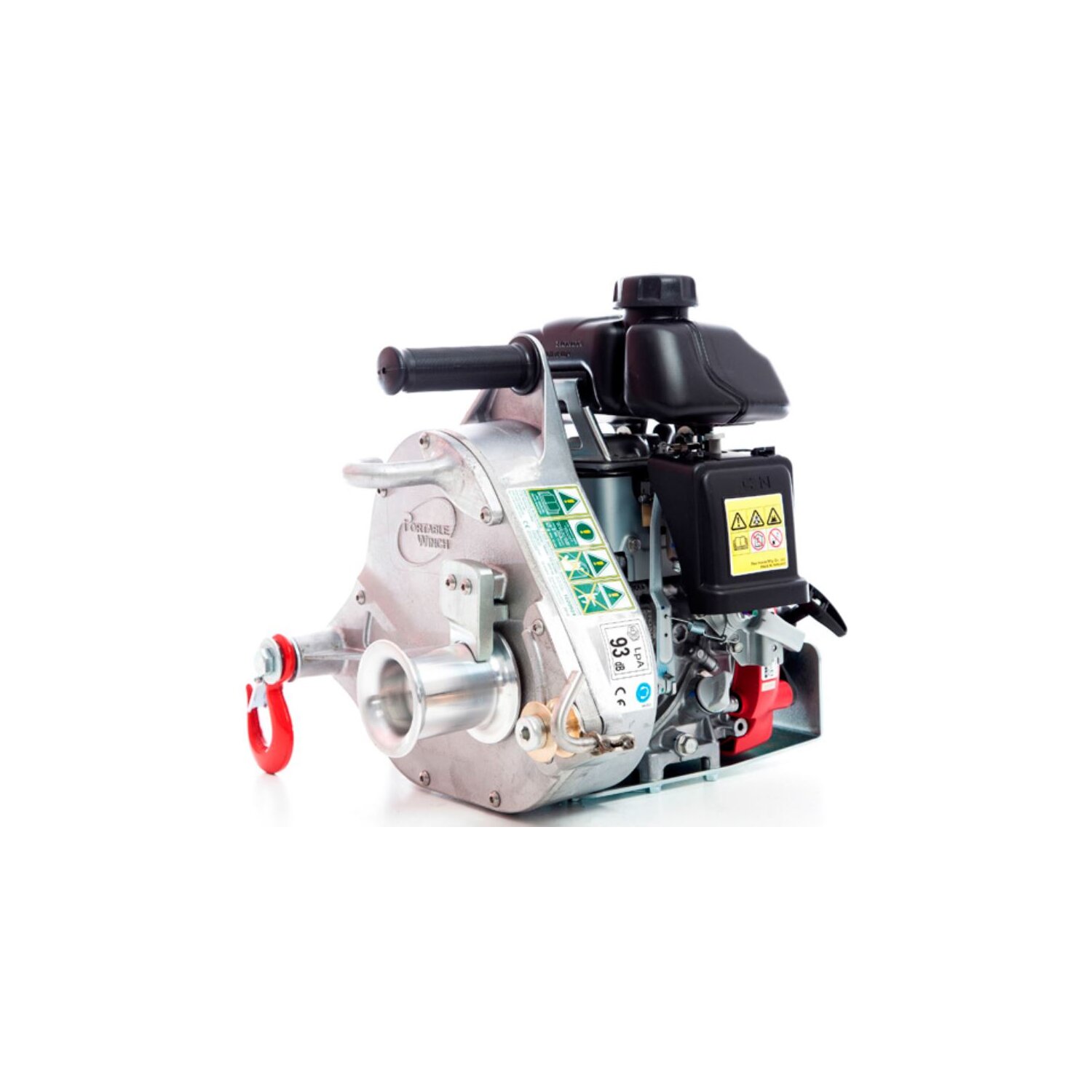

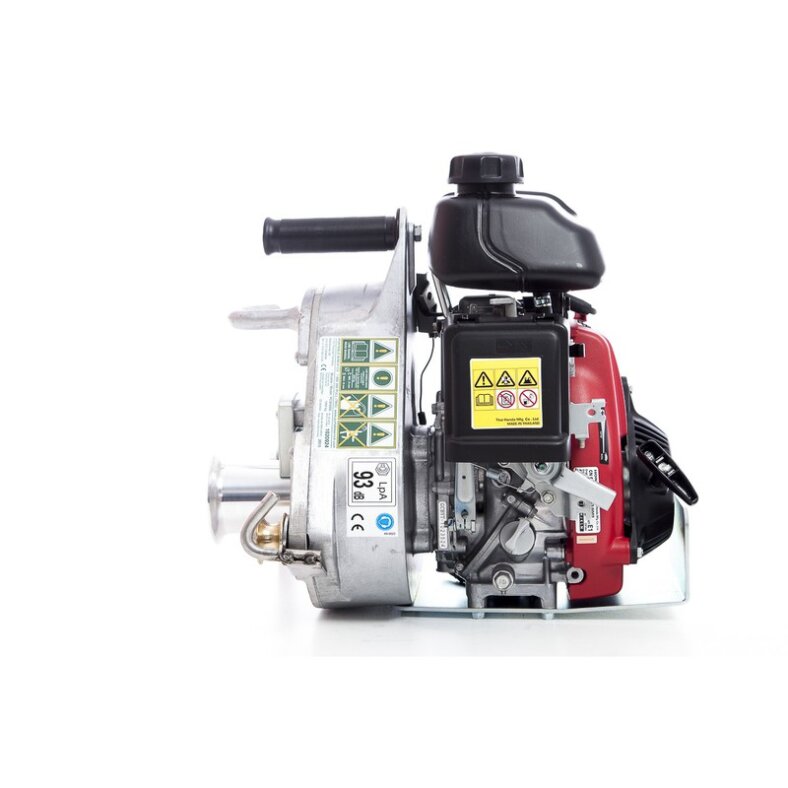

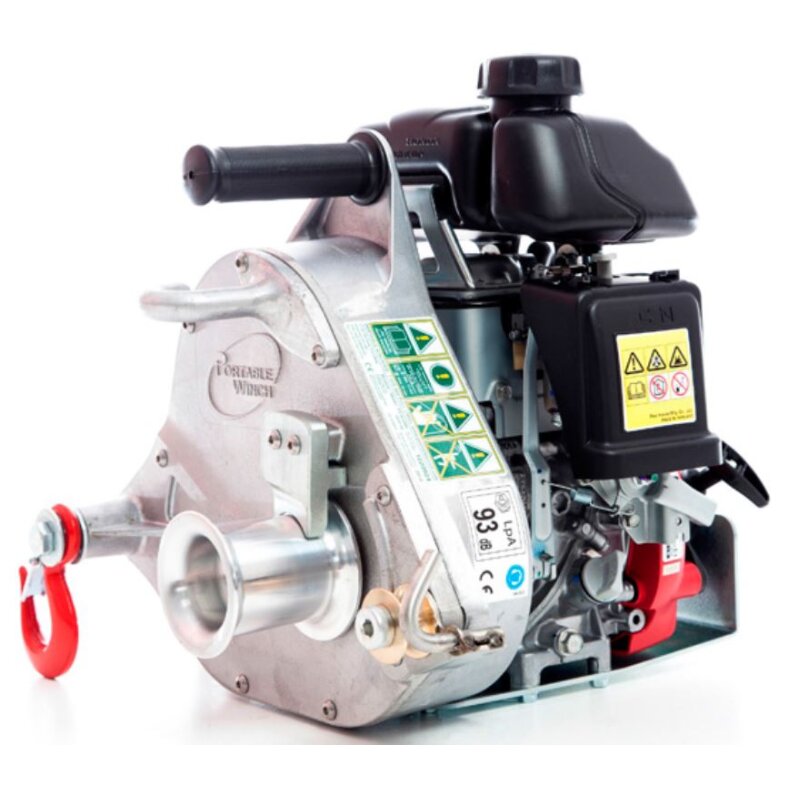

PCW5000 GAS-POWERED PULLING WINCH. MAX. PULLING FORCE: 1000 KG

Perfect for pulling heavy loads! Powered by the HONDA 4-stroke GXH-50 cc engine, this winch is designed for heavy loads. Weighing just 16 kg, it offers a pulling force of 1000 kg. In addition, there are two speed options thanks to the interchangeable capstan drums. If you opt for POWER, choose the 57 mm drum pulling at a speed of 12 meters per minute. If your situation calls for SPEED, choose the 85 mm* drum pulling at a speed of 18 meters per minute. The PCW5000 portable capstan winch can be used with any length of double-braid polyester rope with a 12 mm diameter and with all Portable Winch equipment and accessories. This winch will be your ally for many years to come. *Drum sold separately (PCA-1100) SPECIFICATIONS CAPACITY Maximum pulling force with installed drum (metric) : 1000 kg Maximum pulling force with optional drum (metric) : 700 kg CAPSTAN DRUMS Installed : 57 mm Optional : 85 mm SPEED 57 mm drum : 12 m/min 85 mm drum : 18 m/min ROPE Pulling : Low stretch double braided polyester - unlimited length Minimum diameter (metric) : 10 mm Maximum diameter (metric) : 16 mm Ideal diameter (metric) : 12 mm ENGINE/MOTOR & GEAR BOX Engine/Motor : Honda 4-stroke GXH-50 cc Gear box and gears : Aluminium alloy gear box. Heat treated 3 stage spur gears. Shafts mounted on ball bearings. Oil bath lubrication. Gear ratio : 110:1 Brake : Anti-reversing needle bearing Clutch : N/A - Direct Drive Drum turns with engine idling : Yes Work cycle : Continuous WEIGHT & DIMENSIONS Weight (metric) : 16 kg Length (metric) : 36,2 cm Width (metric) : 37,1 cm Height (metric) : 36,1 cm
