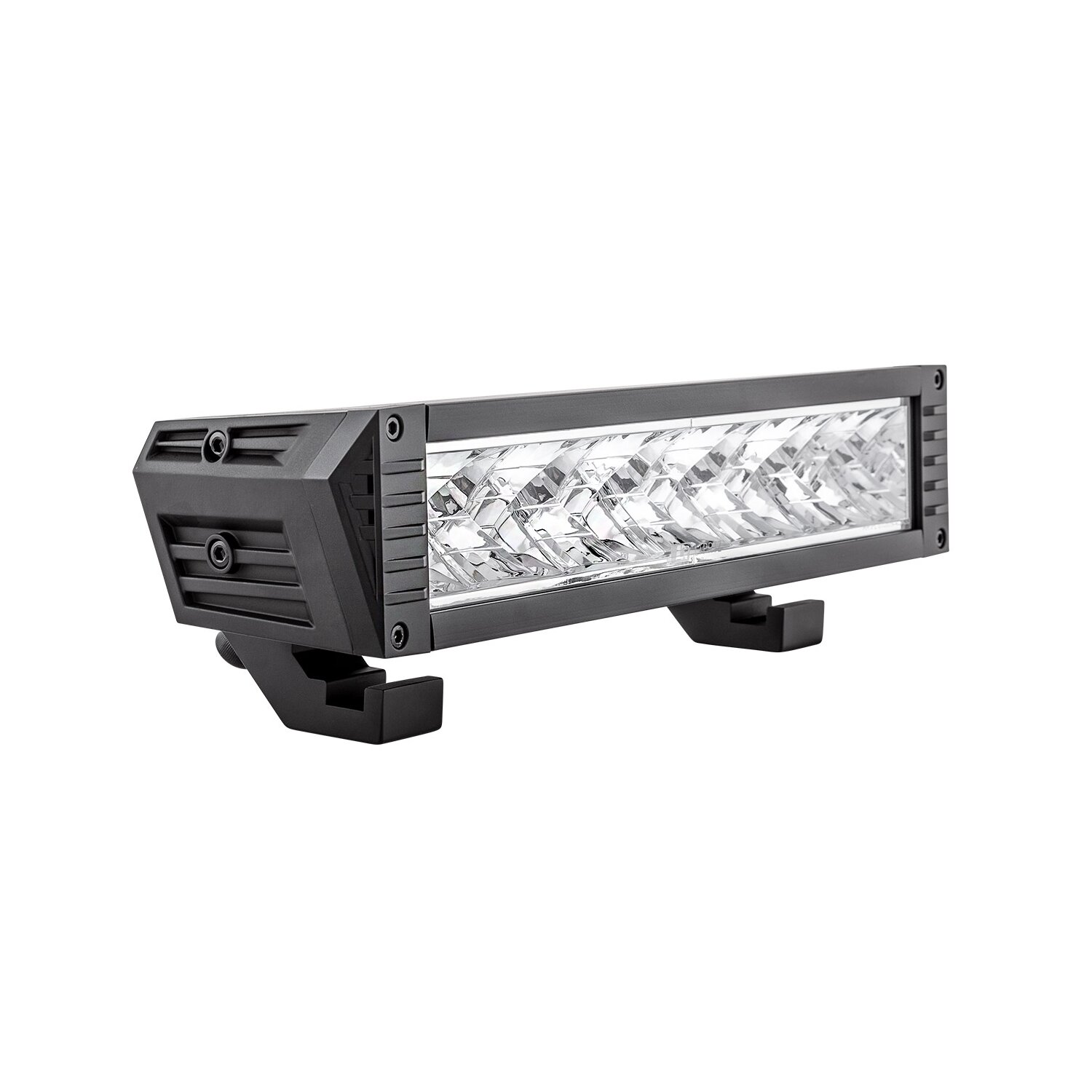

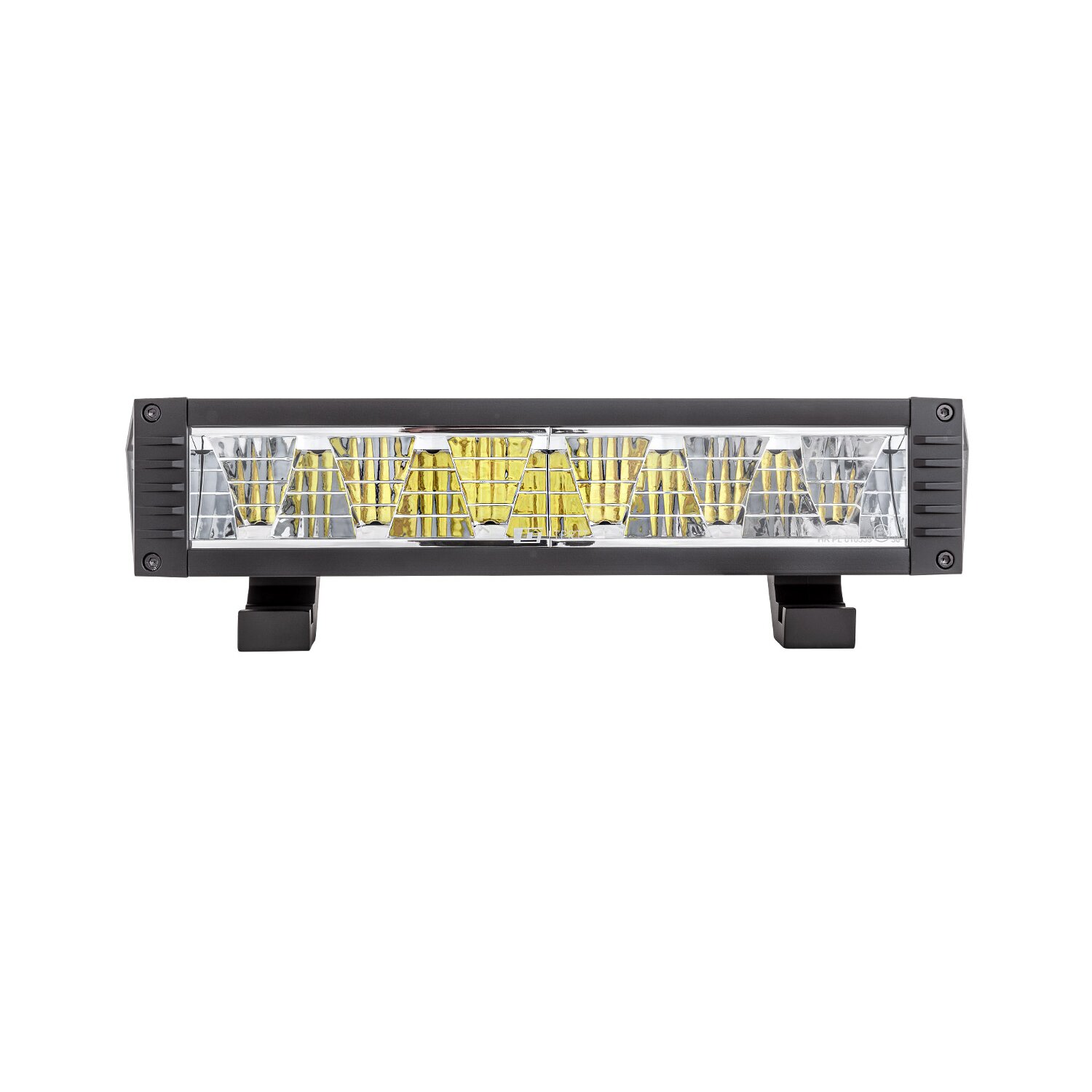

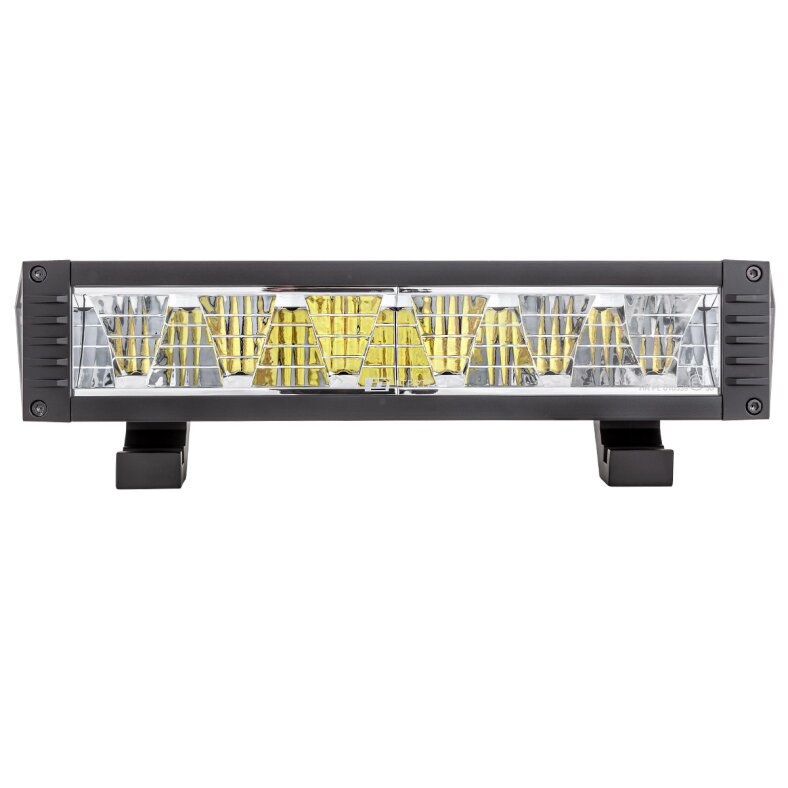

Lightpartz Prime-X 11" LED Onroad Driving Lightbar ECE

Item number: LTPZ-PX11E-2



Homologation:
ECE R112
High Beam
ECE R10  Electromagnetic Compatibility
Range: >1030m

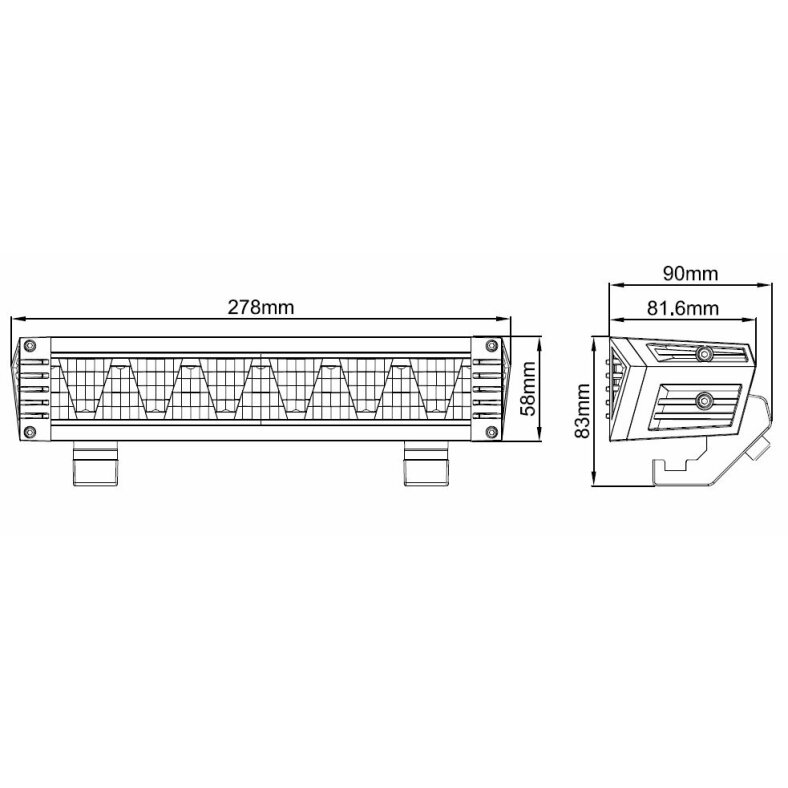

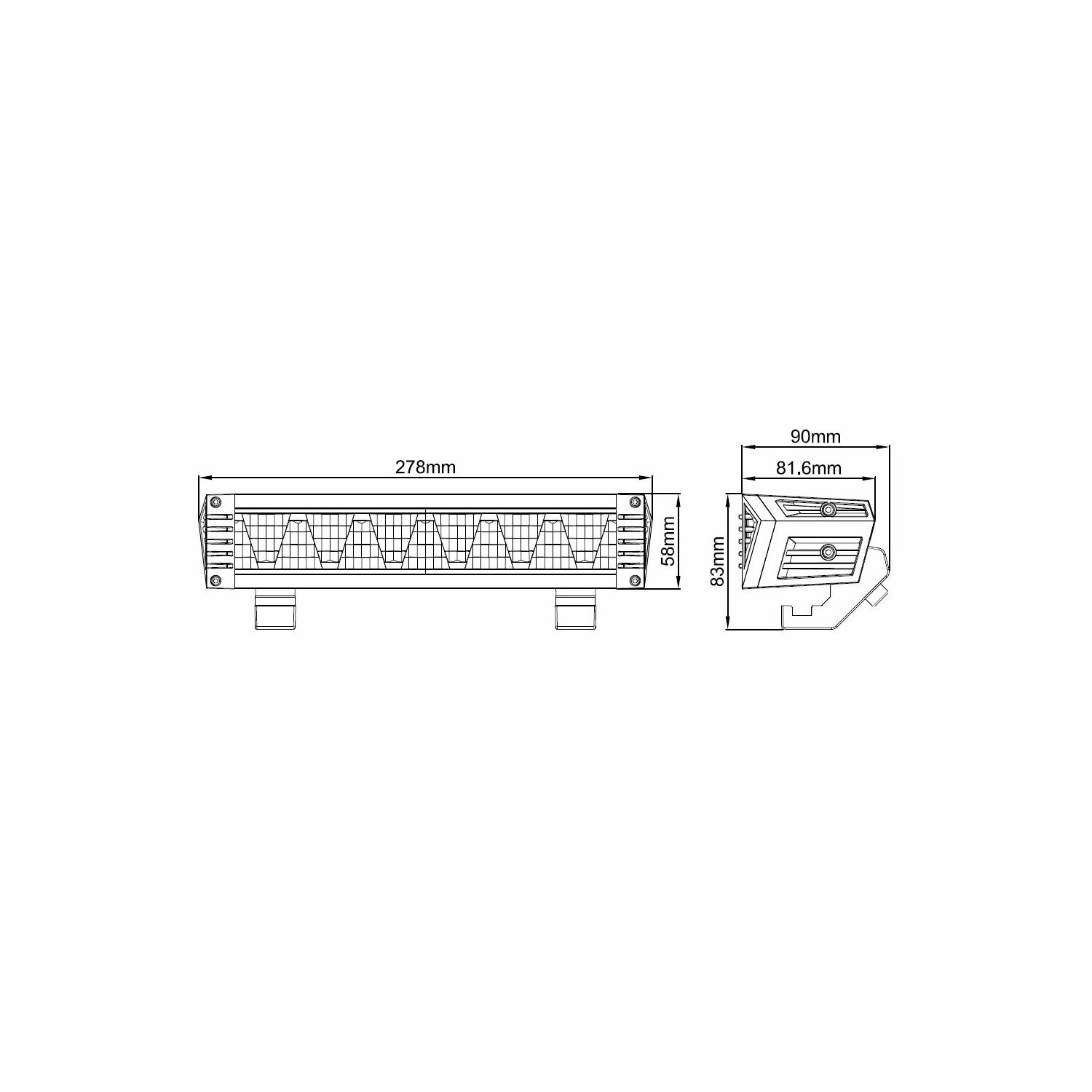

Produktabmessungen: 8.16x27.8x5.8 cm (BxLxH)
Produktgewicht: 3,18 Kg

Category: Prime-X


671,99 €

including 19% VAT. , plus shipping (Paket)

Old price: 732,99 €
(You save 8.32% that is 61,00 €)

Shipping time: 1 - 2 workdays

piece

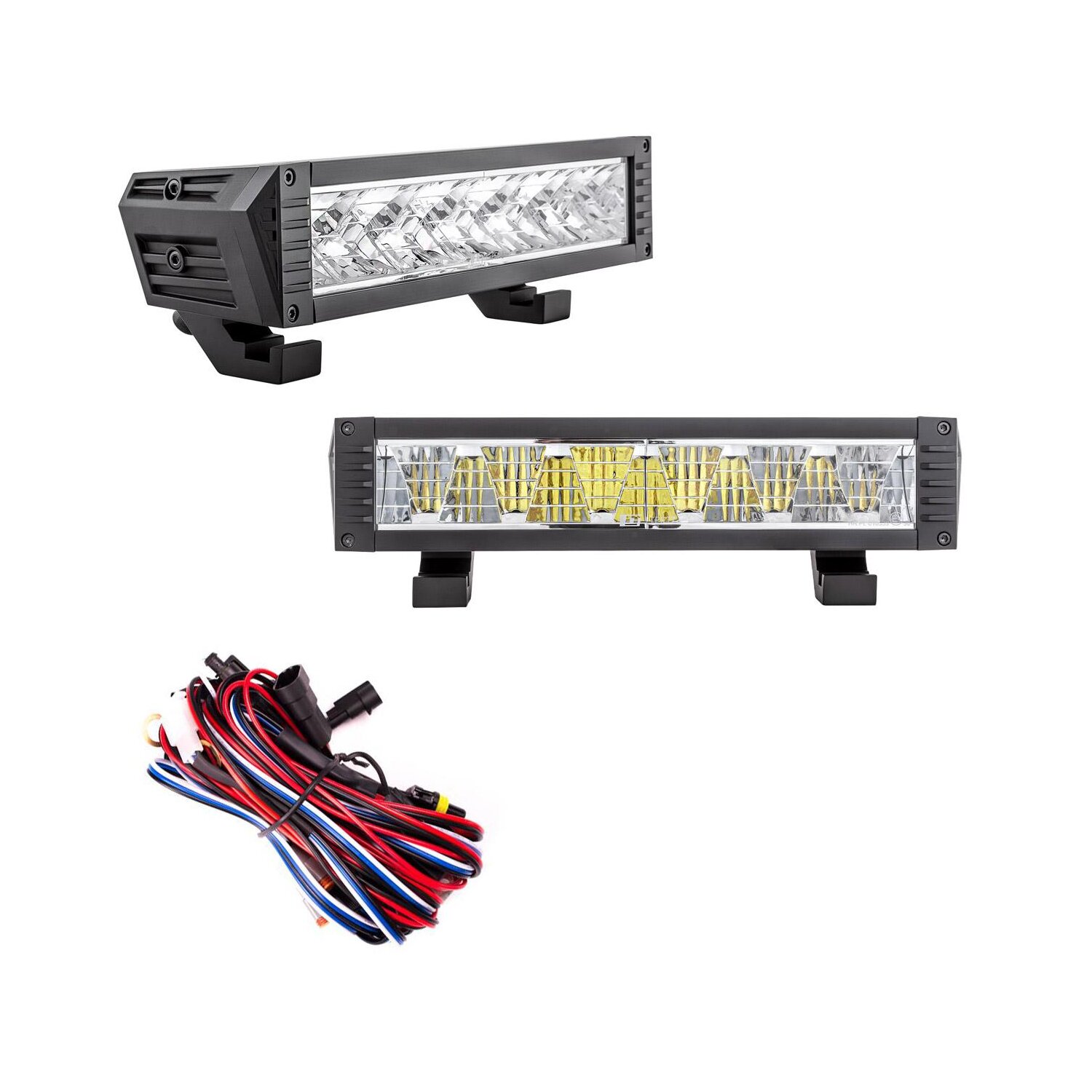

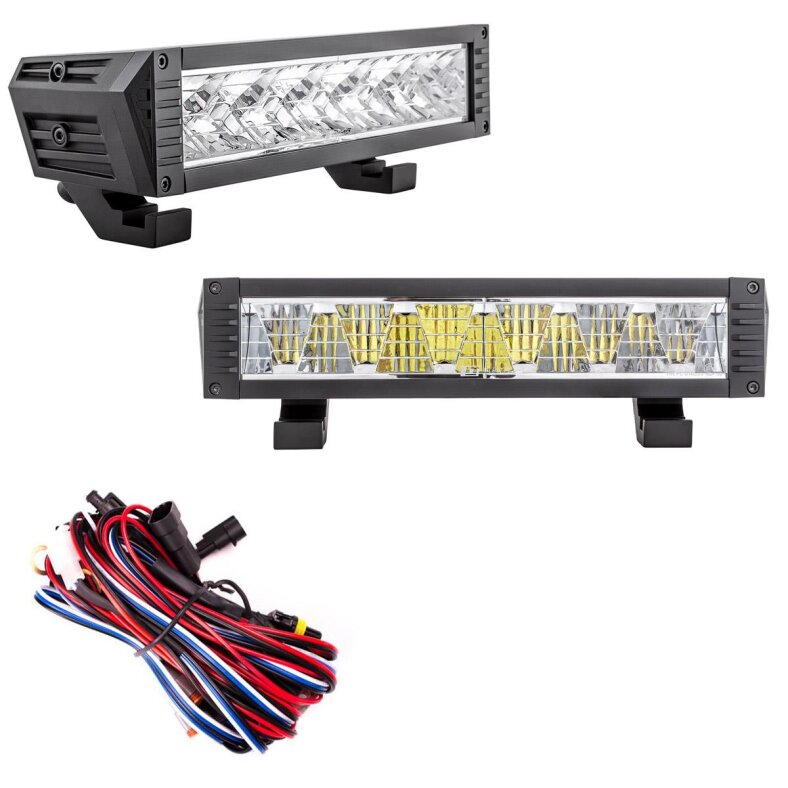

2x LIGHTPARTZ High-End
Prime-X 11" Onroad Driving Lightbar
incl. Harness Cable


Special Features:
  • Highest water proof: Suitable for high pressure
  • Highest quality materials
  • Extremely small installation size
  • Possible operation at an environmental temperature of -40° - +95° C
  • Certification for electromagnetic compatibility
  • Reference Number: 30

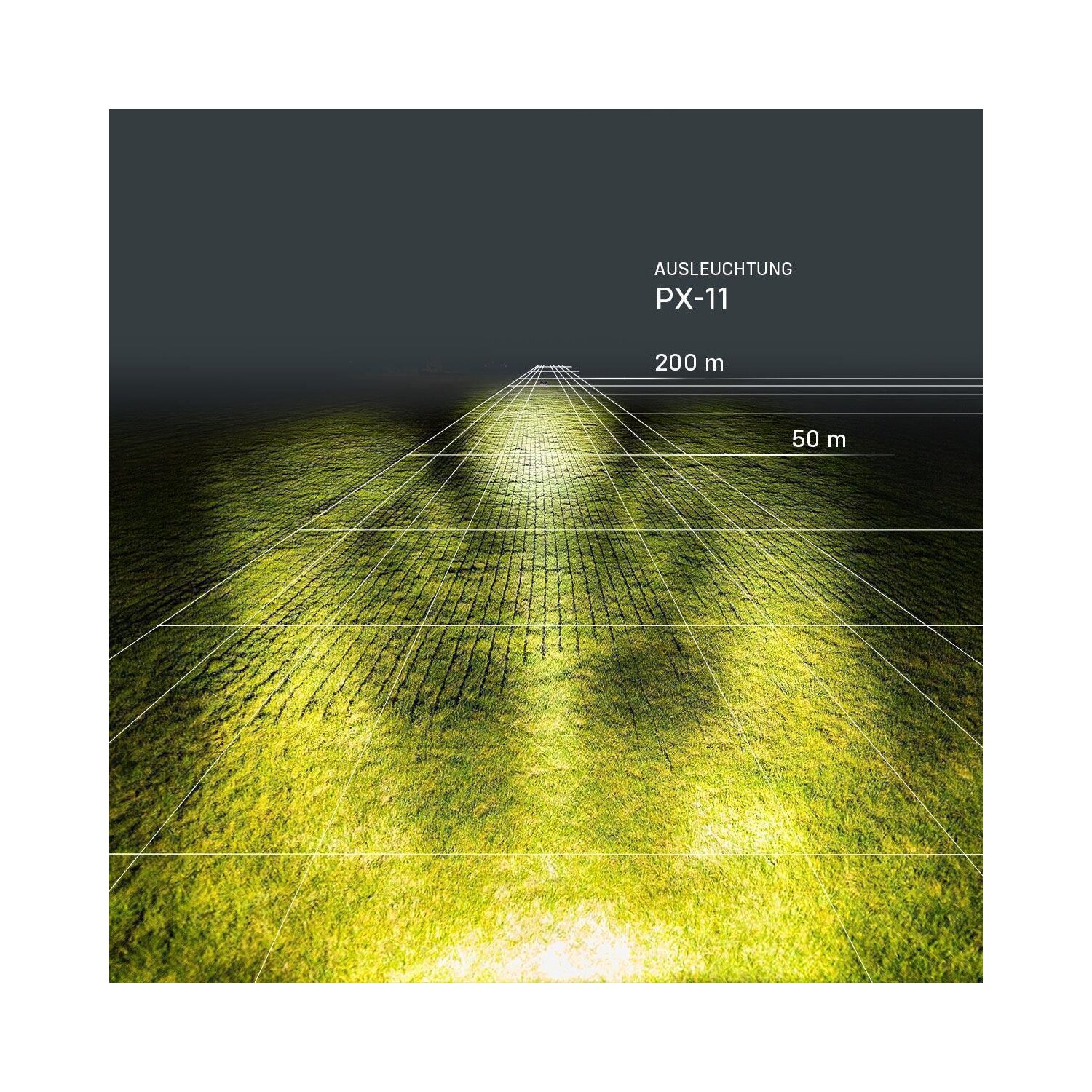

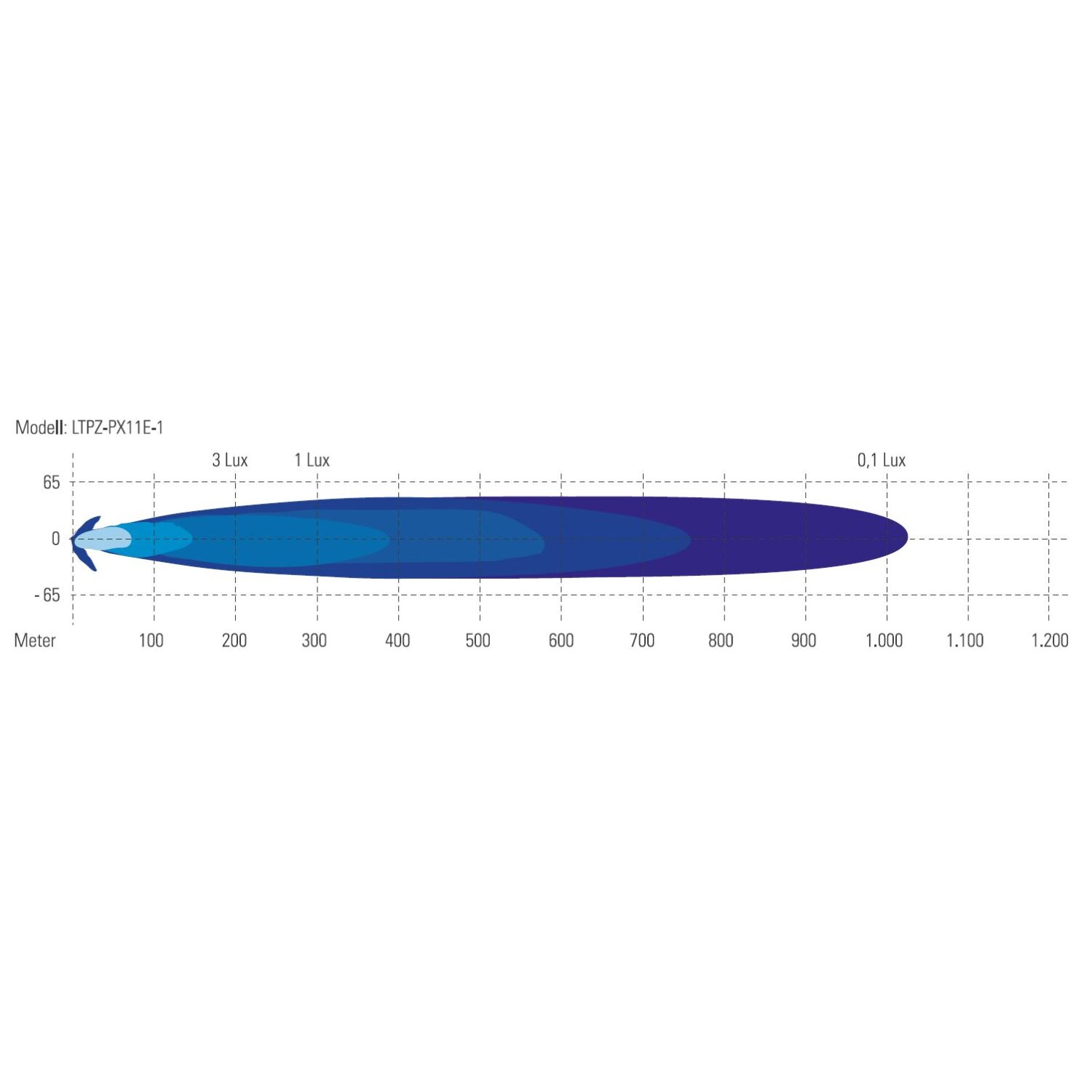

  • Unique range: 1030m (0.25Lx)


Technical Data:
  • Operating Voltage: 9-33V DC

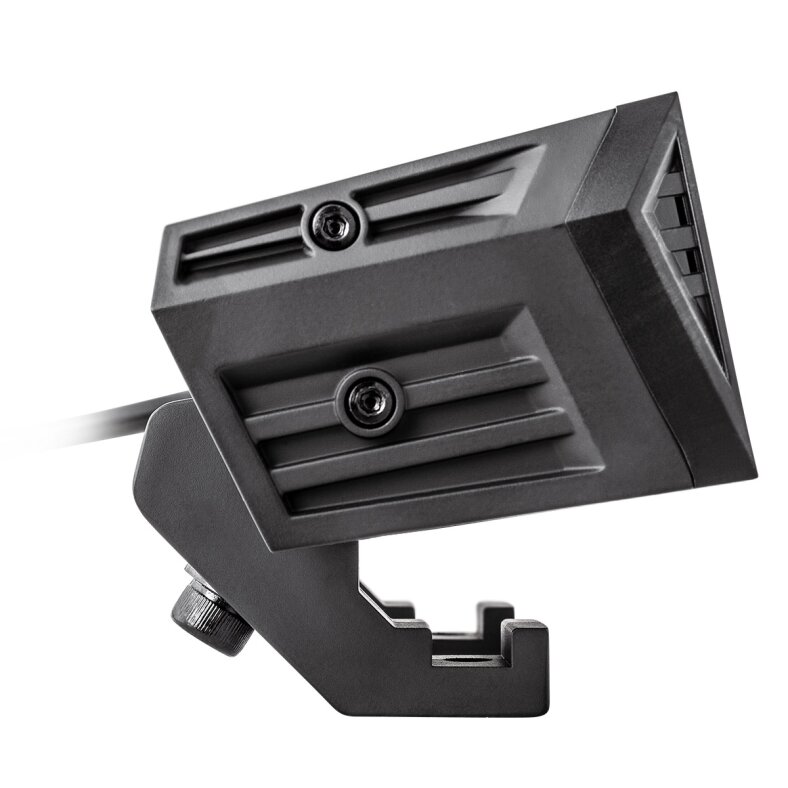

  • Housing: Aluminum 6063, UVHC-3000 black coating
  • Lens: Sabic LEXAN LS2-111

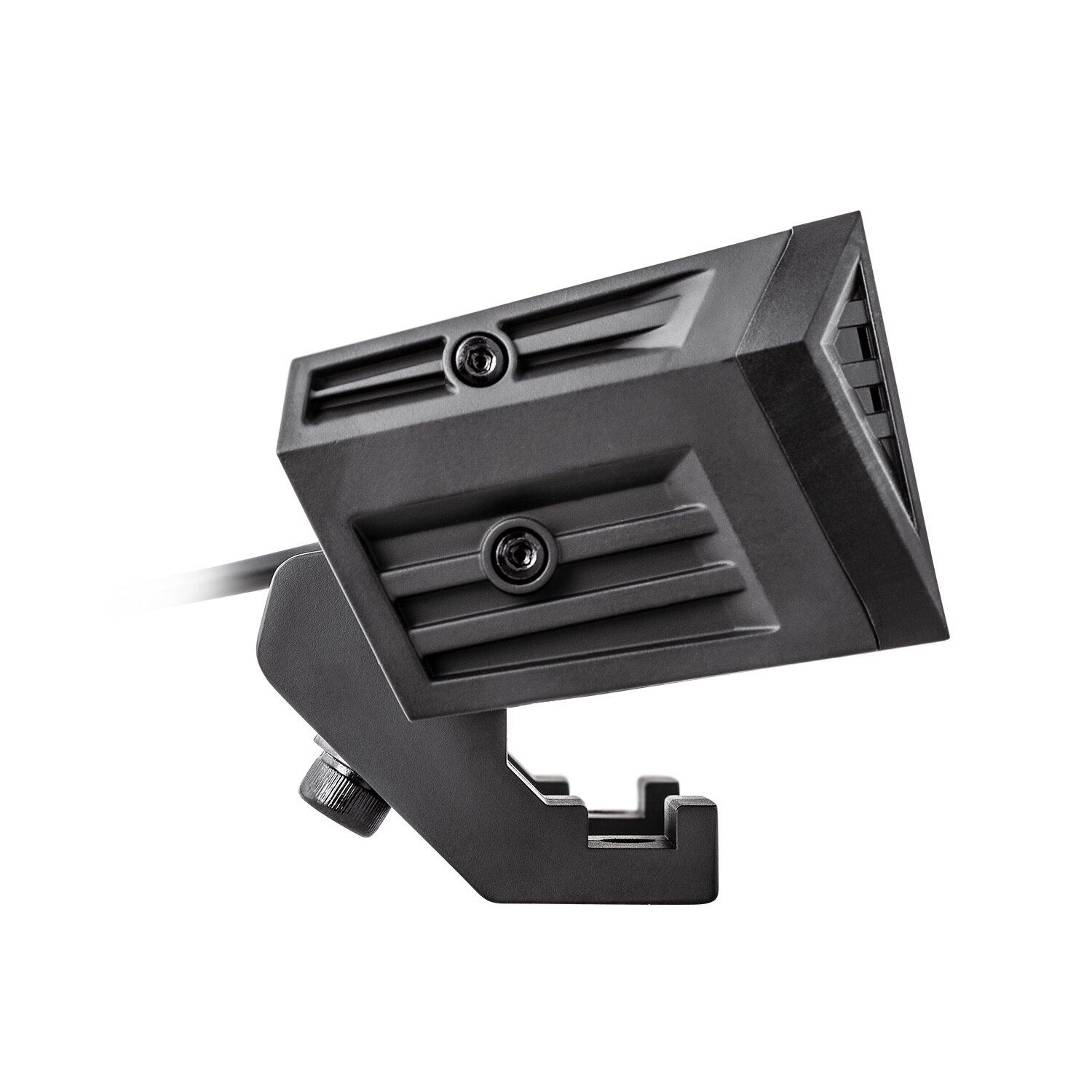

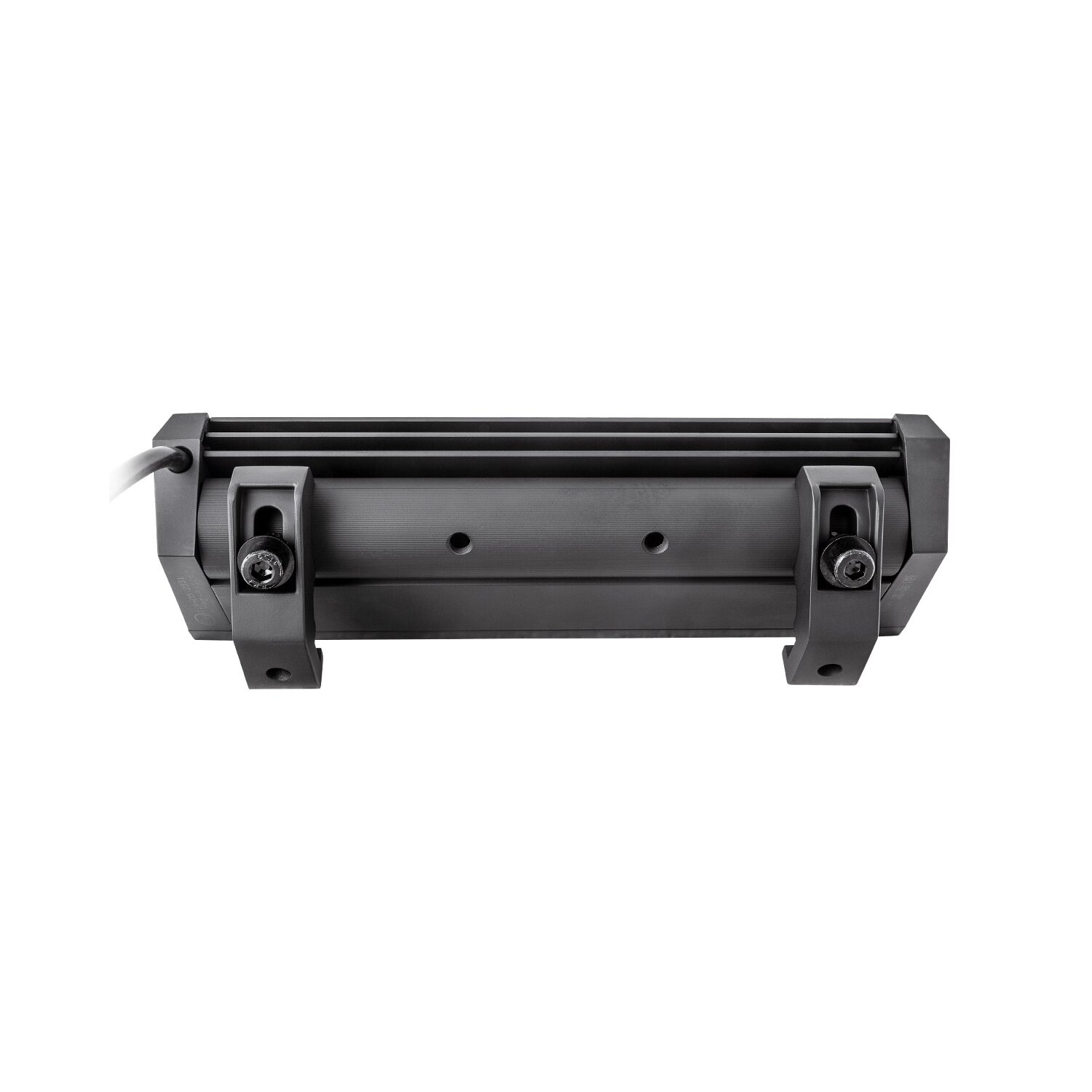

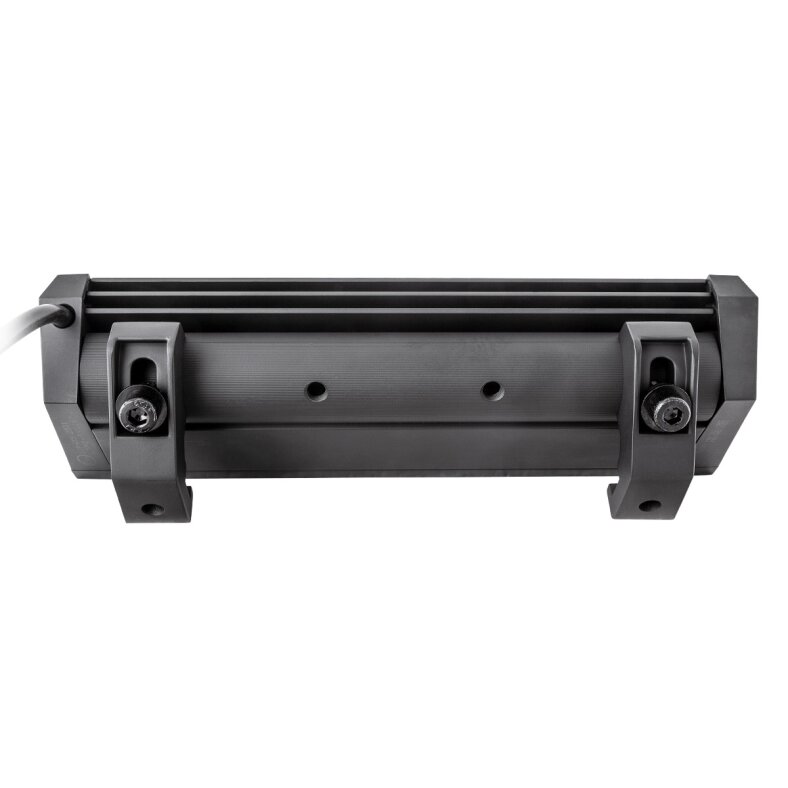

  • Bracket: Alu-Die-Cast
  • Protection Class: IP69K (Test according to ISO 20653 (2013)
  • Connector: DT04-2P
  • Homologation: ECE R10 | R112.01
  • Reference Number: 30
  • Lumen (raw): 4.367lm
  • Power: 12V:  54.5W | 24V: 51.8W
  • LEDs: 11 pcs.
  • Light Color: white
  • Luminous Intensity: 12V: 137000 cd | 24V: 132700 cd

Shipping weight: 3,46 Kg
Product weight: 3,18 Kg
