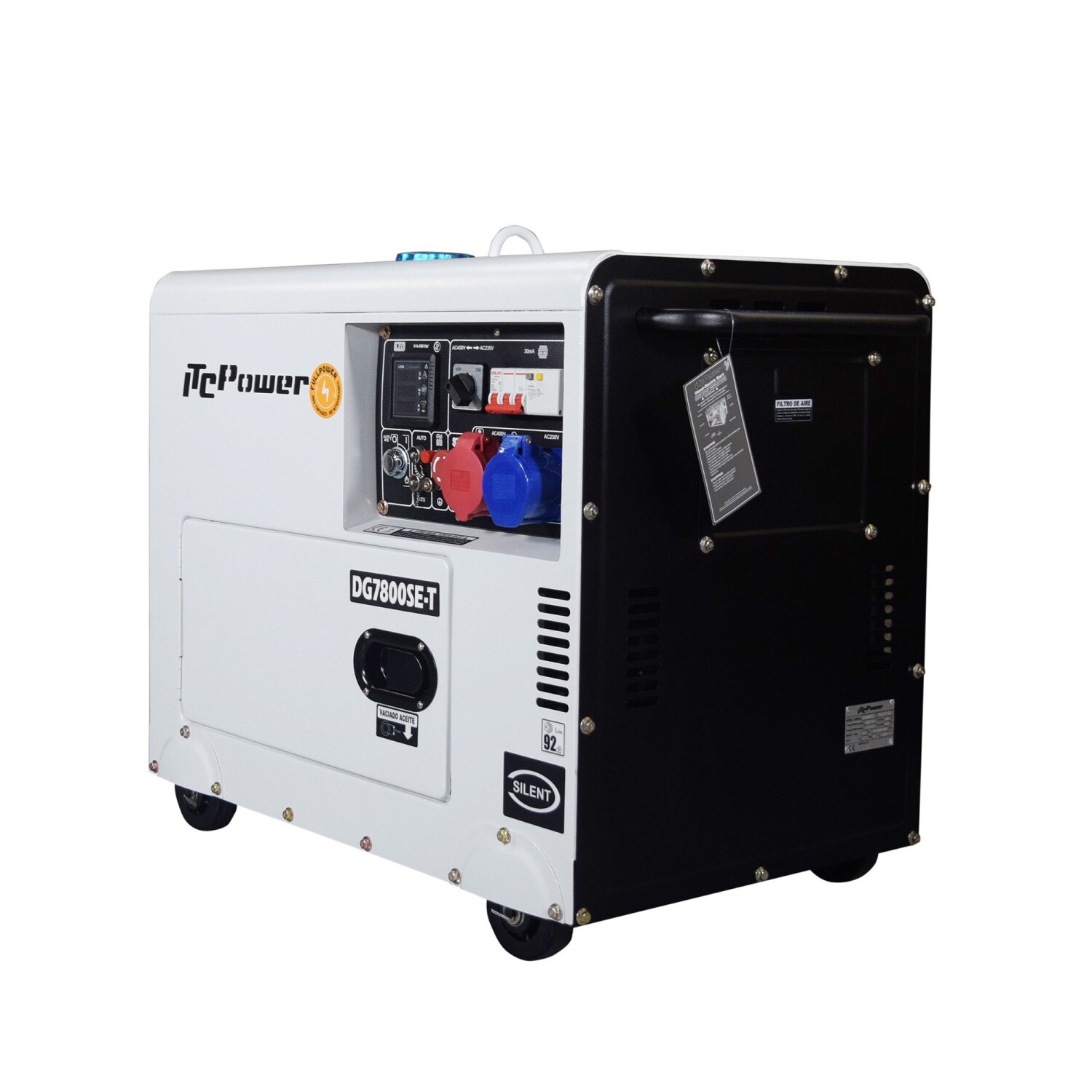

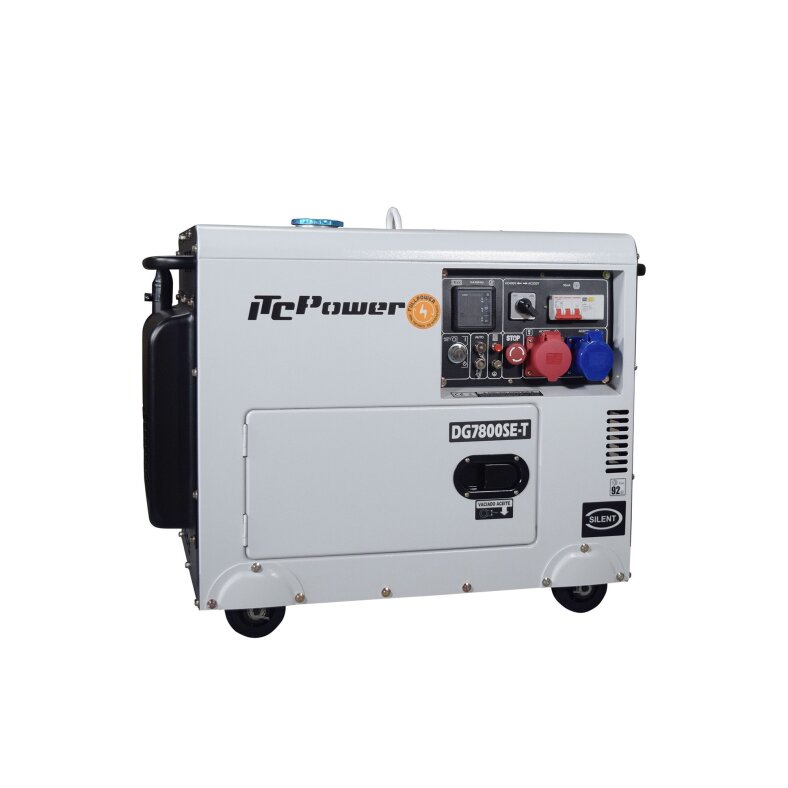

ITC POWER Diesel Stromaggregat Full Power 8 KVA DG7800SE-T 230V/400V

Diesel generator ITC-POWER DG7800SE-T

400V device with full power on 230V

• with AVR voltage regulator
• with electric starter
• 400 V and 230 V

Ideally suited for your building site or for home security - Emergency power supply for the home
AVR voltage regulator ensures constant voltage, so you can operate sensitive electronics

• 4-stroke diesel engine with direct injection
• Large tank
• The cladding ensures a low noise level

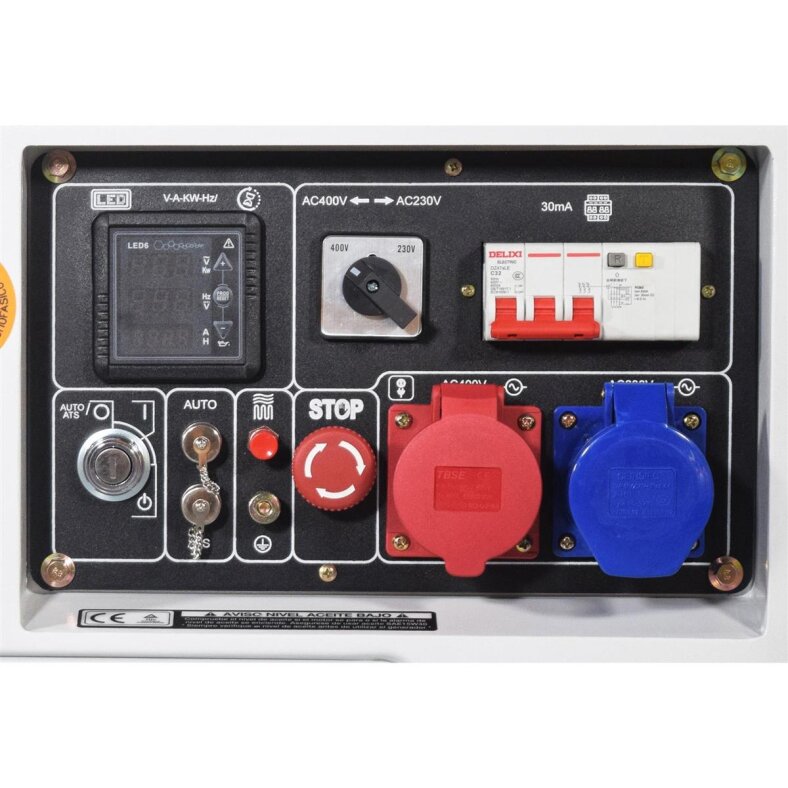

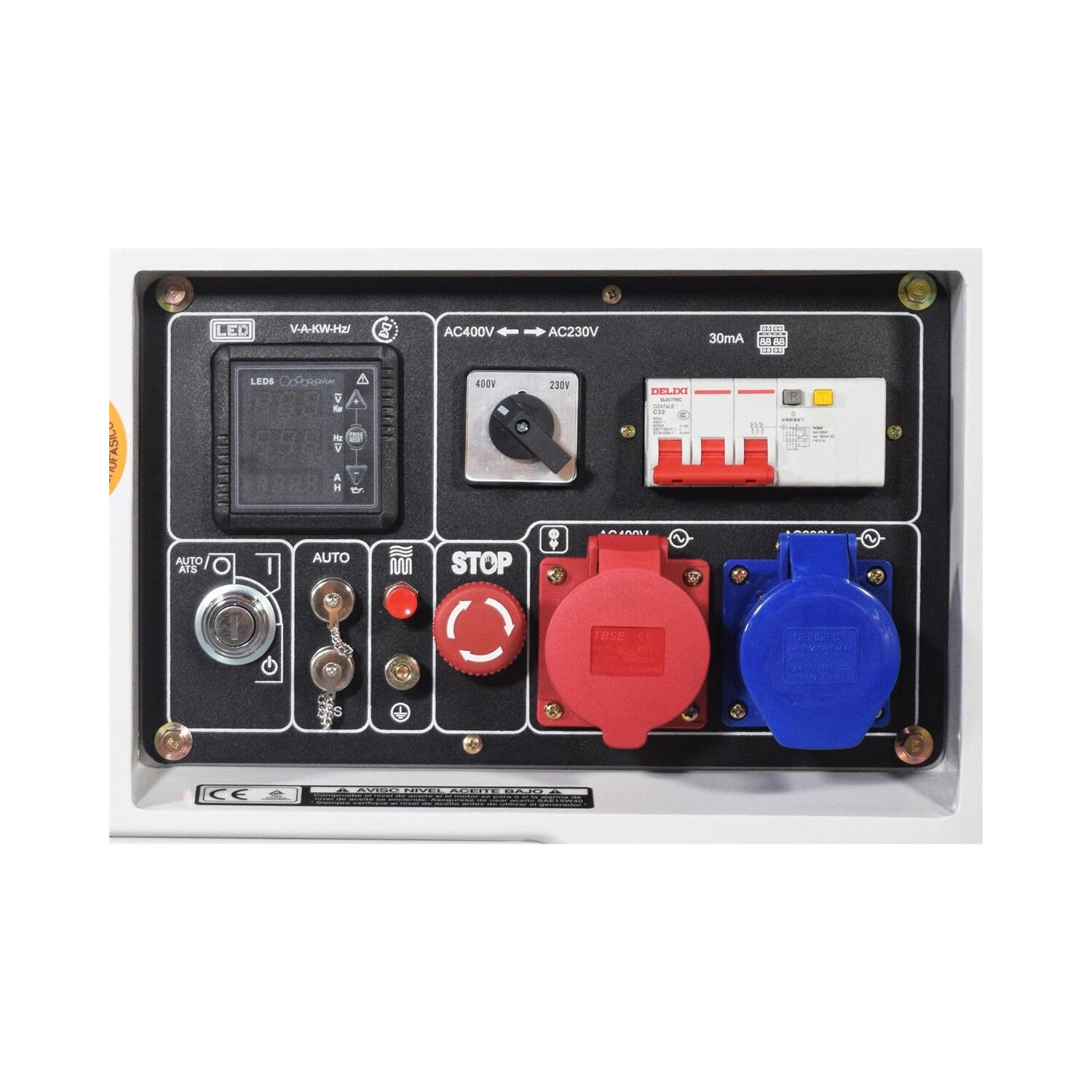

• The digital display ensures you many monitoring possibilities
• overload protection
• Oil shortage protection
• LED display
• 1 x 400V socket 16AMP (the big red one)
• 1 x 230 V socket 32AMP (the big blue one)
• earth protection
• With ATS connection

Technical data:

• frequency 50 Hz
• Voltage 400 V / 230V full power on 230V and on 400V
• Nominal power on 230V 6 KW / on 400V 7,5 kVA
• maximum power on 230V 6,3 KW / on 400V 7,9 kVA
• FI circuit breaker
• Display LED6
• tank capacity 14 litres
• Independent working time at 50 % load 13 hours
• Volume 73dB at 7 meters
• battery 36 Ah
• motor D500E
• Power of the engine 12,0 PS
• displacement 498 cc
• oil capacity 1.65 litres
• Generator A6T 100% copper
• electric starter, battery included
• AVR voltage regulator
• speed 3,000 rpm
• dimensions 920x520x760 mm
• gross weight 167 Kg

The generator is supplied on wheels.
