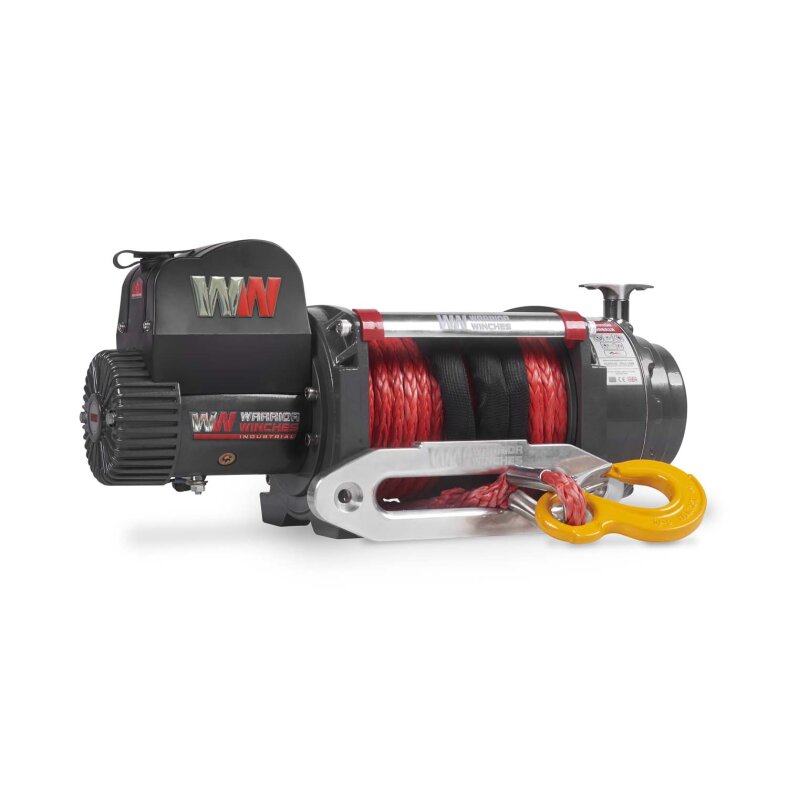

Electric Winch Warrior Samurai S20000 9,1 t 12 V Synthetic Rope

Item number: WW10EWA12

Produktabmessungen: 26x47.05x32.6 cm (BxLxH)
Produktgewicht: 45,00 Kg

Category: Doppelmotor Winde


1.990,00 €

including 19% VAT. , plus shipping (Paket)

Shipping time: 1 workdays

piece


Unser für Sie empfohlenes Bundle:

Electric Winch Warrior Samurai S20000 9,1 t 12 V Synthetic Rope
Universal Mounting Plate up to 15000LB
Winch cover Warrior logo black neoprene with elastic rubber band
+ 1.990,00 €
+ 59,90 €
+ 29,90 €
Gesamtpreis 2,079,80 € *

Warrior Winches are excited to announce the arrival of the colossal Samurai 20000lb Winch with ARMORTEK Synthetic rope 14mm 25m length.
Designed for the toughest of applications & tested in the most extreme environments imaginable, this great piece
of kit boasts a massive 7.5 hp Series wound motor, which is housed in full steel supports, ensuring this
immense Warrior is ready for any battle.

Available in 12v or 24v this Beast comes packed with all the features you would expect from the Samurai
Range
, the motor and gearbox are fully double sealed, the high spec motor boasts brass internals, all
the external fi ttings including the roller fairleads are stainless steel & the smooth planetary gearing is
full steel. All this is backed up by the unrivalled Warrior Lifetime Warranty.

Standard Features:

  • Line Capacity: 20.000lb (9.072kg)
  • Rope: 25m of 14mm ARMORTEK Synthetic Rope with Clevis Hook
  • Motor: All Brass (no corrosion) reversible 7.5hp/5.4kw 12v Series Wound Motor - Powers In and Out
  • Gearbox: Freespooling Clutch - Allows cable to be unwound manually
  • Double Sealed 3 Stage Planetary Gears
  • Brake: Automatic in the drum
  • Double sealed Drum (Gearbox/Motor)
  • Gear Ratio: 430:1
  • Sealed Waterproof Contactor 600 Amp
  • Reinforced Plastic Contactor Cover for Added Protection

Accessories:

  • 3m Remote Handset
  • Roller Fairlead: Heavy Duty 4-Way Roller Fairlead with Stainless Steel Rollers
  • Mounting Bolts: Included for Standard installation

Also Includes:

  • 1.5m Heavy Duty Battery Cables (May need extending dependant on application)
  • Battery Isolation Switch (Failure to fit will invalidate warranty)
  • Instruction Manual

Other Information:

  • Dimensions: 610mm L x 216mm D x 254mm H
  • Mounting Bolt Pattern: 254mm x 114.3mm
  • Drum Size (D x L): 89mm x 219mm
  • Approx. Shipping Weight: 67kg

Layer of Line pull
wire rope lbs/kg
1 2000/9072
2 16160/7330
3 13557/6149
4 11677/5297
Line pull Line speed Amp draw
lbs/kg ft/min m/min 12 V
0 19.7 6.0 100
6000/2728 7.2 2.2 220
10000/4545 5.6 1.7 320
12500/5682 4.9 1.5 350
14000/6350 4.6 1.4 380
17500/7938 3.0 0.9 450
20000/9072 3.0 0.9 480






Shipping weight: 58,50 Kg
Product weight: 45,00 Kg
