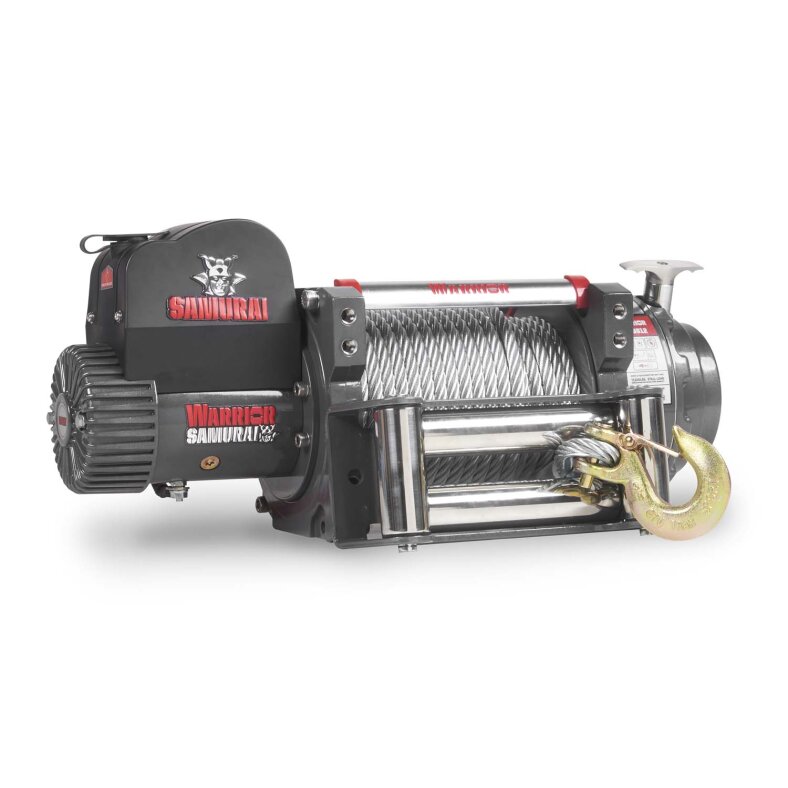

Electric Winch Warrior Samurai S17500 7,9 t 24 V

Electric Winch Warrior Samurai S17500 7,9 t 24 V

SKU: 175SS24
GTIN: 5060423980735
Category: Winches

999,99 €

incl. 19% VAT , plus

Available immediately
Delivery time: 6 - 9 Workdays (DE - int. shipments may differ)

piece

The Samurai S17500 24V is the best EUR for lb on the market. Outstanding features includes huge 7.0hp
high quality double sealed motor with brass fittings, heavy duty waterproof contactors, double sealed drum
on maintenance free bearings, quiet, fully sealed efficient full steel planetary gearing. Stainless steel roller fairlead
and fittings are standard.

Standard Features:

Line Capacity: 17.500lb (7.938kg)
Rope: 26m of 12mm Steel Cable with Clevis Hook
Motor: All Brass (no corrosion) reversible 7.0hp/4.9kw 12v Series Wound Motor - Powers In and Out
Gearbox: Freespooling Clutch - Allows cable to be unwound manually
Sealed 3 Stage Planetary Gears
Brake: Automatic in the drum
Double sealed Drum (Gearbox/Motor)
Gear Ratio: 430:1
Sealed Waterproof Contactor 600 Amp
Reinforced Plastic Contactor Cover for Added Protection

Accessories:

3m Remote Handset
Roller Fairlead: Heavy Duty 4-Way Roller Fairlead with Stainless Steel Rollers
Mounting Bolts: Included for Standard installation

Also Includes:

1.5m Heavy Duty Battery Cables (May need extending dependant on application)
Battery Isolation Switch (Failure to fit will invalidate warranty)
Instruction Manual

Other Information:

Dimensions: 610mm L x 216mm D x 254mm H
Mounting Bolt Pattern: 254mm x 114.3mm
Drum Size (D x L): 89mm x 219mm
Approx. Shipping Weight: 66kg

Layer of	Line Pull
Synth. Rope	lbs/kg
1	17500/7938
2	14000/6364
3	12500/5682
4	10000/4545
5	6000/2728

Line Pull	Line Speed		Amp Draw
lbs/kg	ft/min	m/min	12 V
0	22.3	6.8	60
6000/2728	9.84	3.0	130
10000/4545	9.8	2.0	170
12500/5682	5.8	1.7	220
17500/7938	5.4	1.2	290

Voltage:	24 V
Line Pull:	6,1 - 8 t
Cable/Rope Length:	26 - 30 m
Cable/Rope Type:	Steel Cable
Price:	1000 - 1999 EUR
Brand:	Warrior®
Application:	Private Off-Road Forestry/Hunt Universal
Vehicle Type:	Car Truck Others
Drive Type:	electric
Special Features:	waterproof
Shipping weight:	66,00 kg
Item weight:	66,00 kg
Dimensions ( Length × Width × Height ):	61,00 × 21,40 × 27,60 cm
