Electric Winch Warrior Samurai S12000 5,4 t 12 V

Item number: WW120SS12

Produktabmessungen: 16x57.9x24.8 cm (BxLxH)
Produktgewicht: 44,00 Kg

Category: IVECO Daily


599,00 €

including 19% VAT. , plus shipping (Paket)

Shipping time: 1 - 2 workdays

piece


Unser für Sie empfohlenes Bundle:

Electric Winch Warrior Samurai S12000 5,4 t 12 V
Icarus Blue Smartphone Seilwinden Steuerung
Icarus Smartphone Steuerung SAMURAI Connector
Universal Montageplatte Anbauplatte Black Motion® Stahl Seilwinden bis 14000LB
Winch cover Warrior logo black neoprene with elastic rubber band
Snatch Block Black Motion® 8000kg 8 t Winch red
Winch / Automotive Connectors  350A bipolar
Batteriekabel Seilwinde 5m 35mm² hochflexibel mit Ringösen
+ 599,00 €
+ 159,00 €
+ 39,90 €
+ 44,90 €
+ 29,90 €
+ 24,90 €
+ 19,90 €
+ 149,00 €
Gesamtpreis 1,066,50 € *

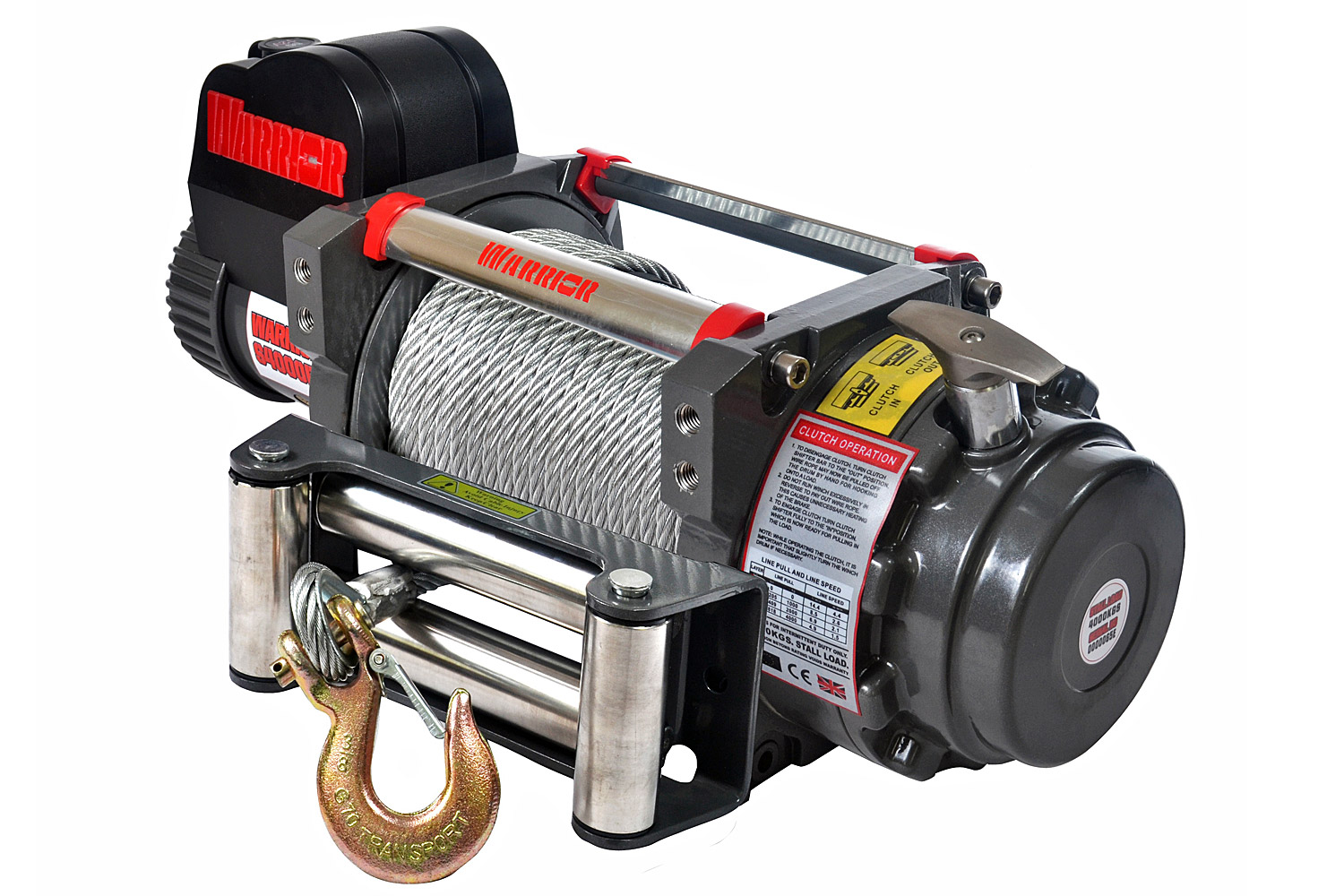

The Samurai S12000 is a high specification winch winch which is ideal for recovery and 4x4 applications.
Its outstanding features include a high quality series wound motor with brass settings, a heavy duty waterproof solenoid,
double sealed drum and quiet, efficient full steel planetary gearing.

Standard Features:

  • Line Capacity: 12.000lb (5.400kg)
  • Rope: 26m of 10.2mm Steel Cable with Clevis Hook
  • Motor: Reversible 6.5hp/4.6kw 12v Series Wound Motor - Powers In and Out
  • Gearbox: Freespooling Clutch - Allows cable to be unwound manually
  • Gear Ratio: 230:1
  • Warranty: Limited Lifetime Warranty with 3 Year Electrical Cover



Accessories:

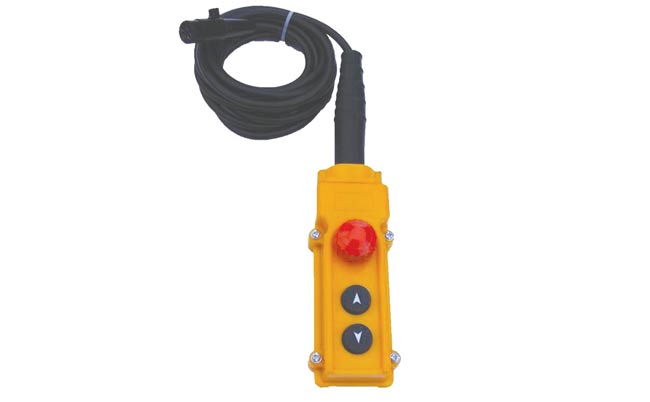

  • Wired Hand Control: 3m Wired Hand Control
  • Wireless Control: Pre-Installed Heavy Duty Wireless Control with Lanyard (Leisure and Non Commercial Use Only)
  • Mounting Plate: Available as optional extra
  • Roller Fairlead: Heavy Duty 4-Way Roller Fairlead with Stainless Steel Rollers
  • Mounting Bolts: Included for Standard installations



Also Includes:

  • 1.5m Heavy Duty Battery Cables (May need extending dependant on application)

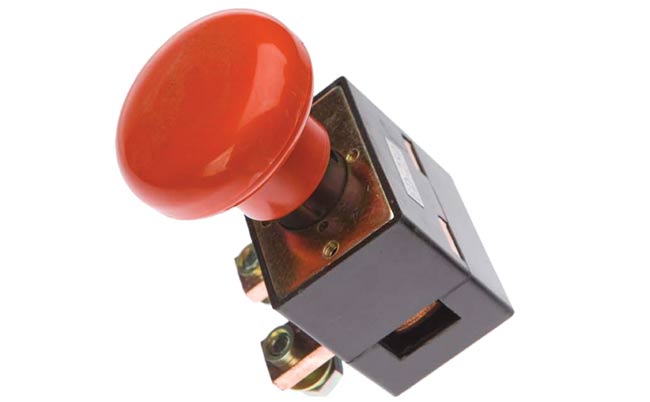

  • Battery Isolation Switch (Failure to fit will invalidate warranty)
  • Instruction Manual


Other Information:

  • Dimensions: 580mm L x 160mm D x 219mm H
  • Mounting Bolt Pattern: 254mm x 114.3mm
  • Drum Size (D x L): 63mm x 223mm
  • Approx. Shipping Weight: 45kg
  • Line Pull - No Load: .8 m/min (100 Amps)
  • Line Pull - Full Load:  1.8 m/min (450 Amps)


Layer of Line pull
wire rope lbs (kg)
1 12000 (5443)
2 9563 (4338)
3 7948 (3606)
4 6800 (3085)
Line pull Line speed Amp draw
lbs (kg) ft/min m/min 12v
0 22.3 6.8 100
4000 (1814) 13.1 4.0 220
8000 (3629) 9.8 3.0 330
12000 (5443) 5.8 1.8 450

Shipping weight: 44,00 Kg
Product weight: 44,00 Kg
