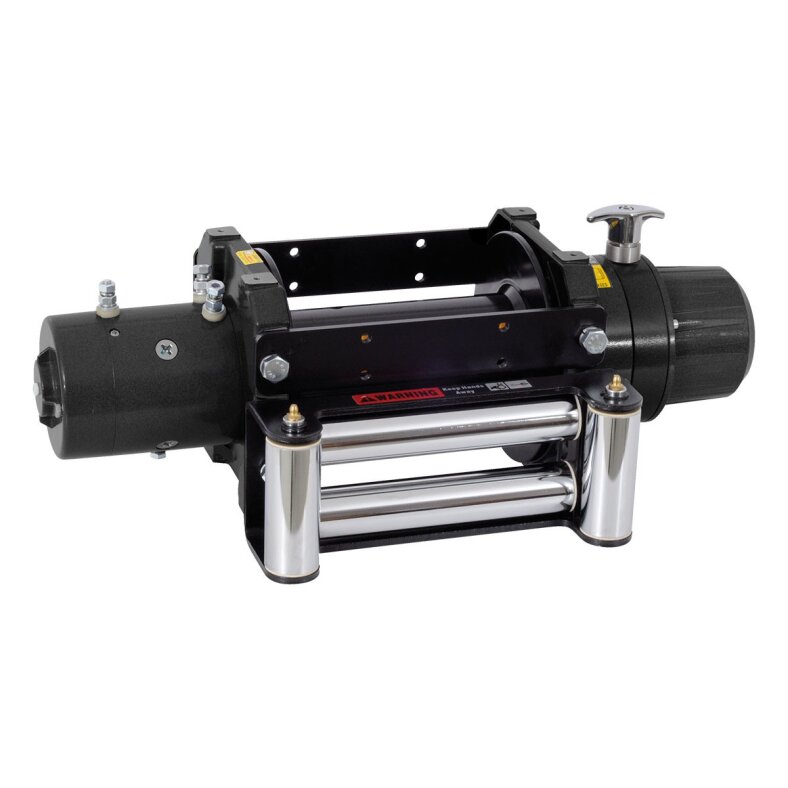

ComeUp winch rhino 8, 3.6t 12v en 14492-1

ComeUp winch rhino 8, 3.6t 12v en 14492-1

SKU: CU-RO8-12V
Category: Winches

Reliable electric winch for commercial, industrial and heavy duty applications
10 equally positioned pin holes with an ergonomic T-handle allow repositioning in 36 degree increments.
Overload protection built into the relay box prevents overloading the winch
Waterproof remote control with thermometric LED indicator warns of motor overheating.
patented mechanical cone brake holds full load.
Retractable, sealed contactor for high electrical currents allows longer duty cycle.
Standard conformity: ce machinery directive 2006/42/eg, ce EMC directive 2004/108/eg,
en 14492-1:2006 power driven winches and sae J706

1.010,00 €

incl. 19% VAT , plus

Delivery time: 39 - 41 Workdays (DE - int. shipments may differ)

Available from: 28.05.2024 (Pre-orders possible)

piece

The ComeUp Rhino 8 electric winch is a reliable tool for commercial and industrial applicationsuable helper for commercial, industrial and heavy-duty applications. The powerful in-line motor and the three-stage planetary gearbox make this winch an all-rounder.
The winch also features a manual freewheel clutch to pull off the rope by hand. The freewheel lever is adjustable and can be attached to the winch in 10 36° increments with the gear cover. The brake system of the winch features an automatic load holding brake with mechanical cone brake outside the drum.
The Rhino 8 12v ComeUp electric winch has overload protection built into the control box. The waterproof cable remote has an LED indicator that warns when the motor is overheating via a heat sensor in the winch. The waterproof sealed relay is rated for high electrical currents and allows for longer duty cycles.
The winch complies with European Standard en 14492-1, making it ideal for frequent, commercial use for loading rolling vehicles onto trailers or for light towing vehicles.

Technical data:

Nominal pulling force: 3,560 kg (nominal value according to en 14492-1)
Motor: 3,430 w / 4.6 ps 12v
Gearbox: 3-stage planetary gear 211:1
Clutch (freewheel): Rotating ring gear
Brake (outside drum): Automatic, full load cbs (Cone Brake Structure)
Winch construction: Die-cast aluminum housing with steel drum
Drum size: 90 x 205 mm (3.5" x 8.1")
Winch pull direction: rope may only be underslung.
Control: waterproof cable control with thermometric LED display (5m cable length)
optional: 2-way radio control (not included)
Hole pattern of mounting screws: 254 x 114 mm (10" x 4.5")|254 x 165 mm (10" x 6.5")
Wire rope recommended: *10 mm x 22.6 m, grade 1,960 N/mm2 with a minimum breaking strength of 69.8 kN, which is required for the en 14492-1 standard.
Weight (incl. rope): 31 kg / 68.3 lb

Meets the requirements of en 14492-1 for winches for recovery:

* The working coefficient for the first layer of rope on the drum must be at least 2.
* The drum/rope diameter ratio to rope center must be at least 10 for the drum.
* The height of the clearance between the outermost rope layer and the end of the drum flange must be at least 1.5 x rope diameter.

Pulling speed and current consumption (first rope layer starting from the drum):

Pulling force, kg / lb	Pulling speed, mpm / fpm	Power consumption, A
Pulling force, kg / lb	Pulling speed, mpm / fpm	12v	24V
No Load	9 / 29.5	45	30
907 / 2,000	3 / 10	90	60
1,814 / 4,000	1.5 / 5	180	120
2,722 / 6,000	1 / 3.3	260	180
3,630 / 8,000	0.7 / 2.3	340	230

Tractive force and rope capacity:

Rope layer	Tractive force by rope layer, kg / lb	Rope length on drum, m / ft
1^st	3,630 / 8,000	6.3 / 20.7
2^nd	3,025 / 6,669	13.8 / 45.3
3^rd	2,593 / 5,717	22.6 / 74
4^th	2,269 / 5,002	30.5 / 100

Scope of delivery:

Cable winch Rhino 8 (12v)
Cable remote control 5 m
Roller window
Removable relay box
Battery cable (1,8m)
Manual

Notice:

The winch is not intended to be used in any way to move or lift people.
The rated pulling force given is based on the first layer of rope on the drum.
A minimum of 5 rope wraps must remain on the drum at all times on the lowest layer of rope

Voltage:	12 V
Line Pull:	3,1 - 4 t
Cable/Rope Type:	without cable/rope
Price:	700 - 999 EUR
Brand:	ComeUp®
Application:	Professional Towing
Vehicle Type:	Car Truck Others
Drive Type:	electric
Special Features:	waterproof
Shipping weight:	47,00 kg
Item weight:	31,00 kg
Dimensions ( Length × Width × Height ):	61,20 × 22,20 × 20,75 cm
