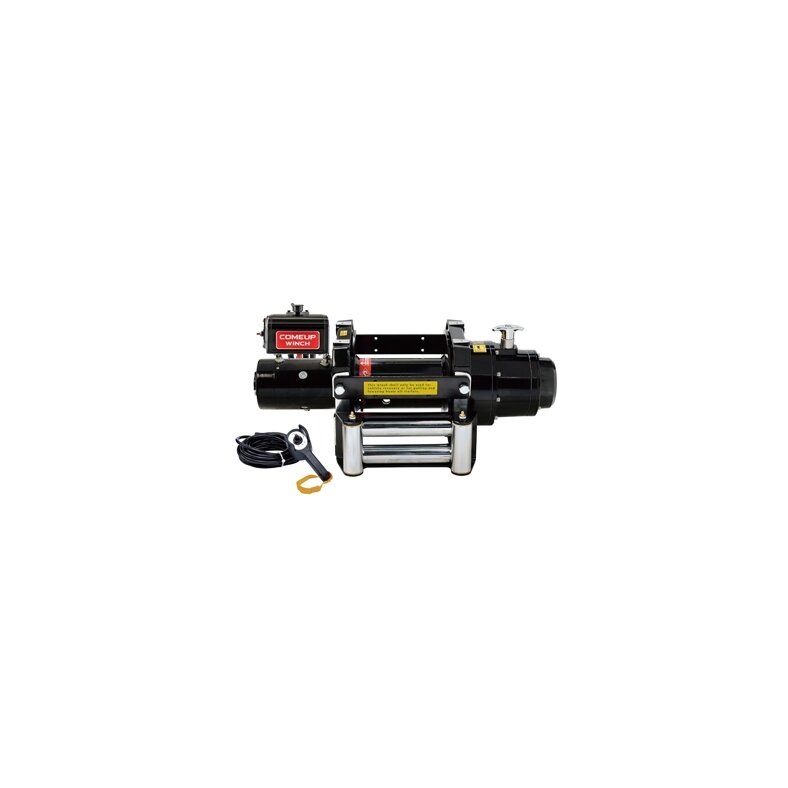

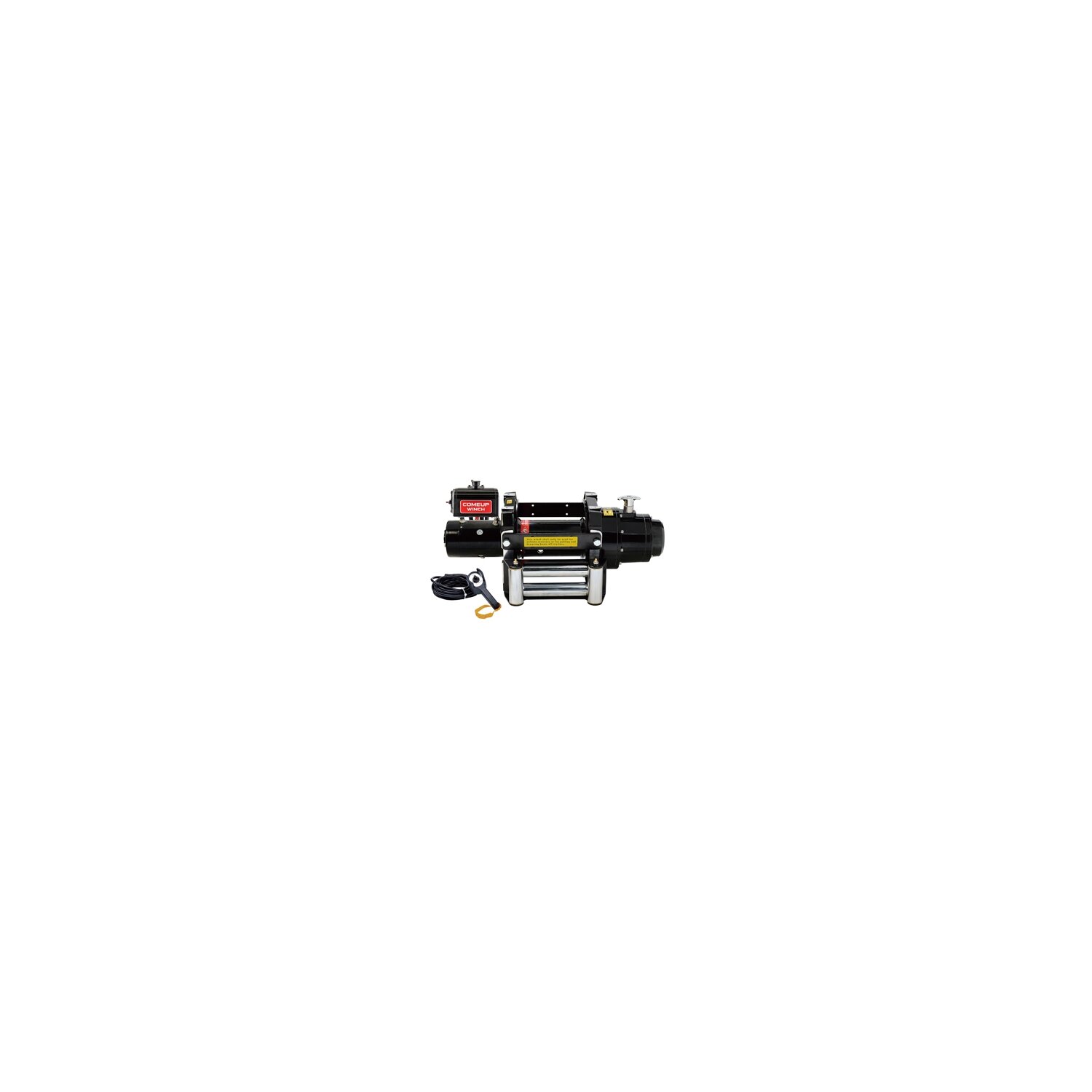

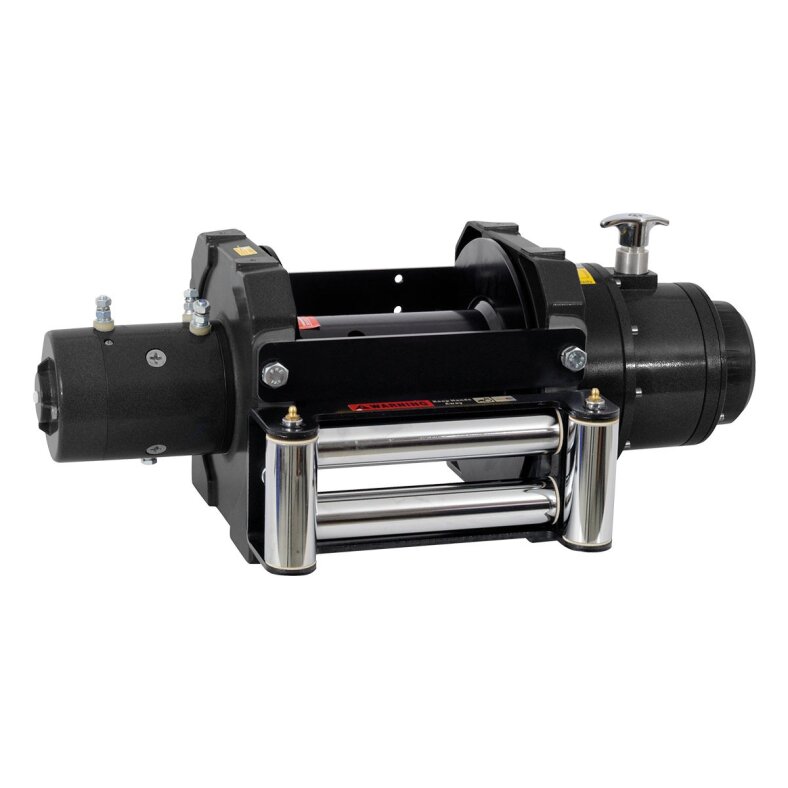

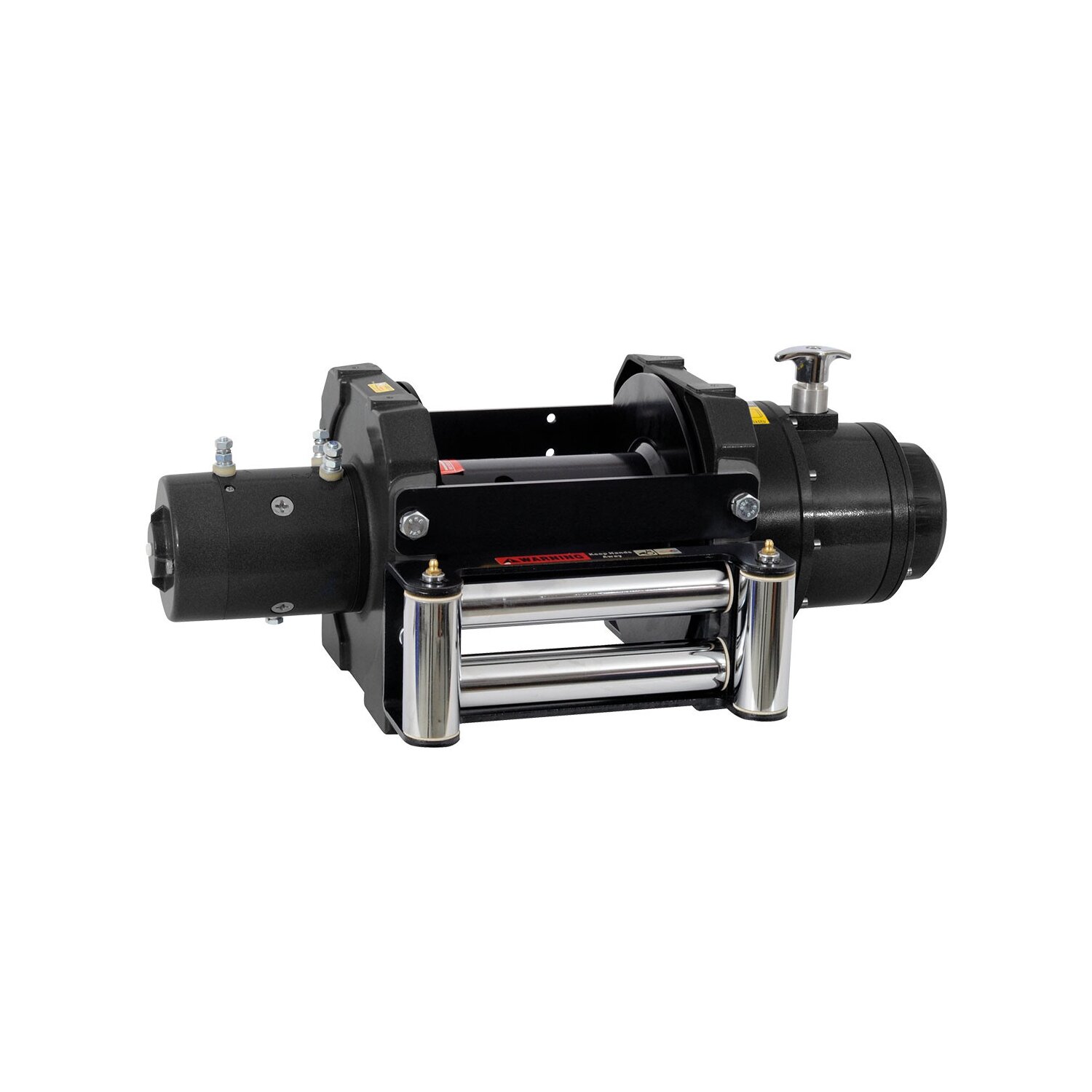

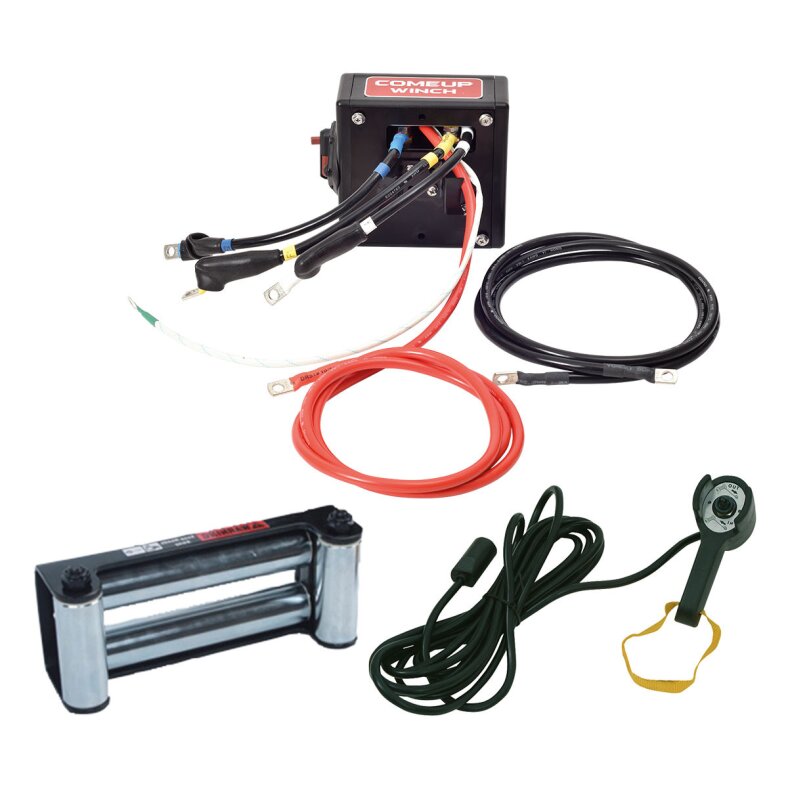

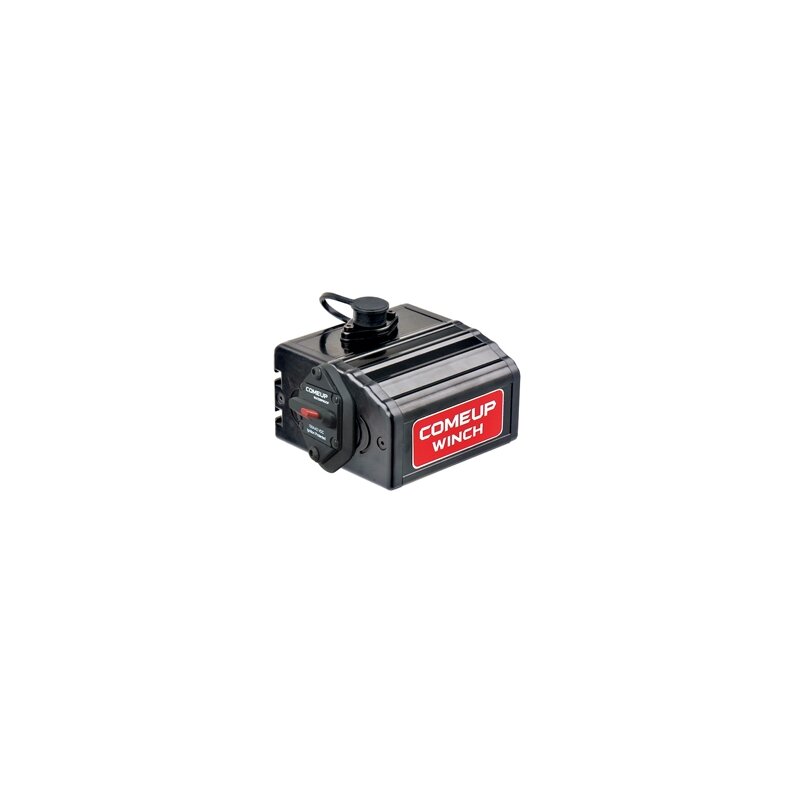

ComeUp Winch RHINO 12, 5,1t 12V EN 14492-1

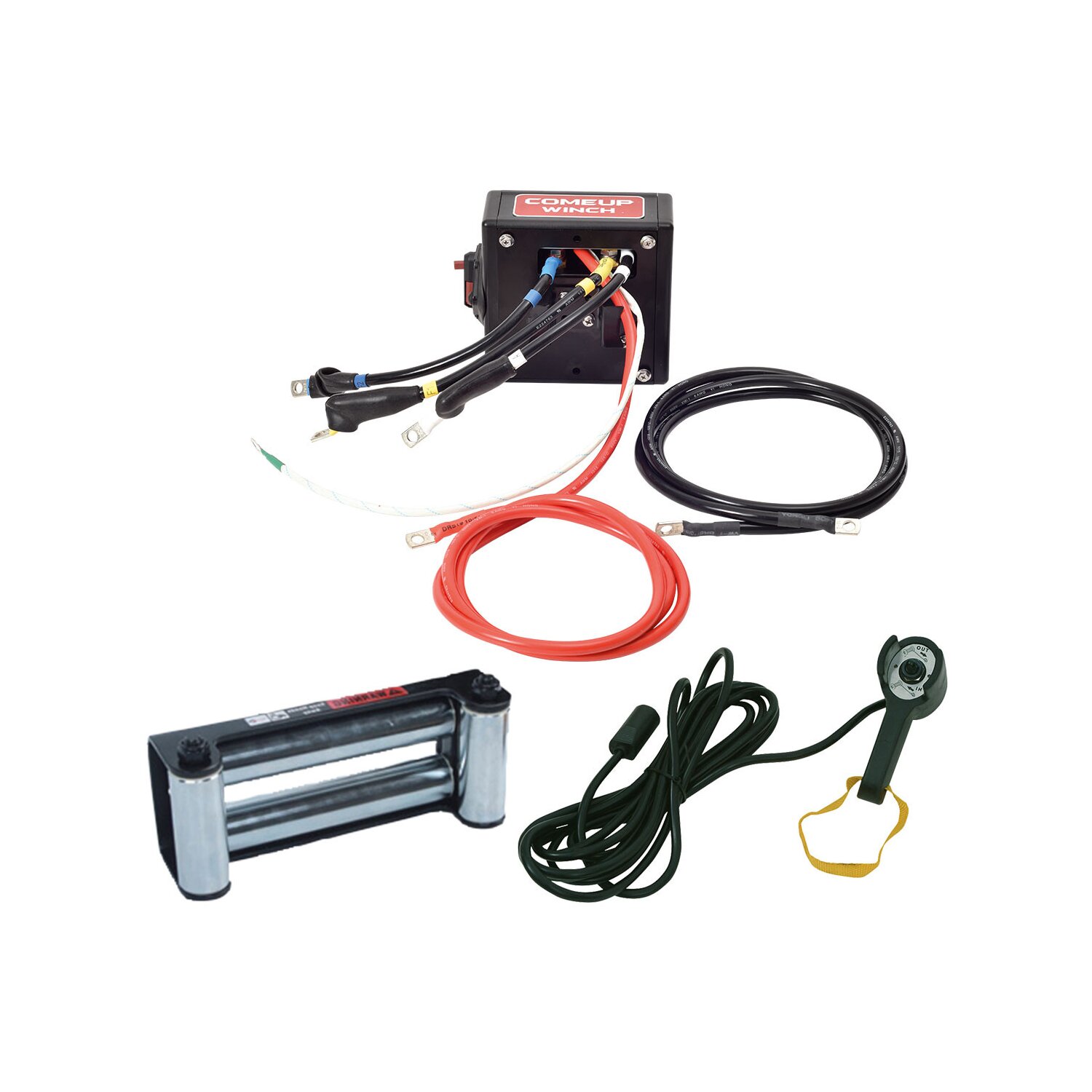

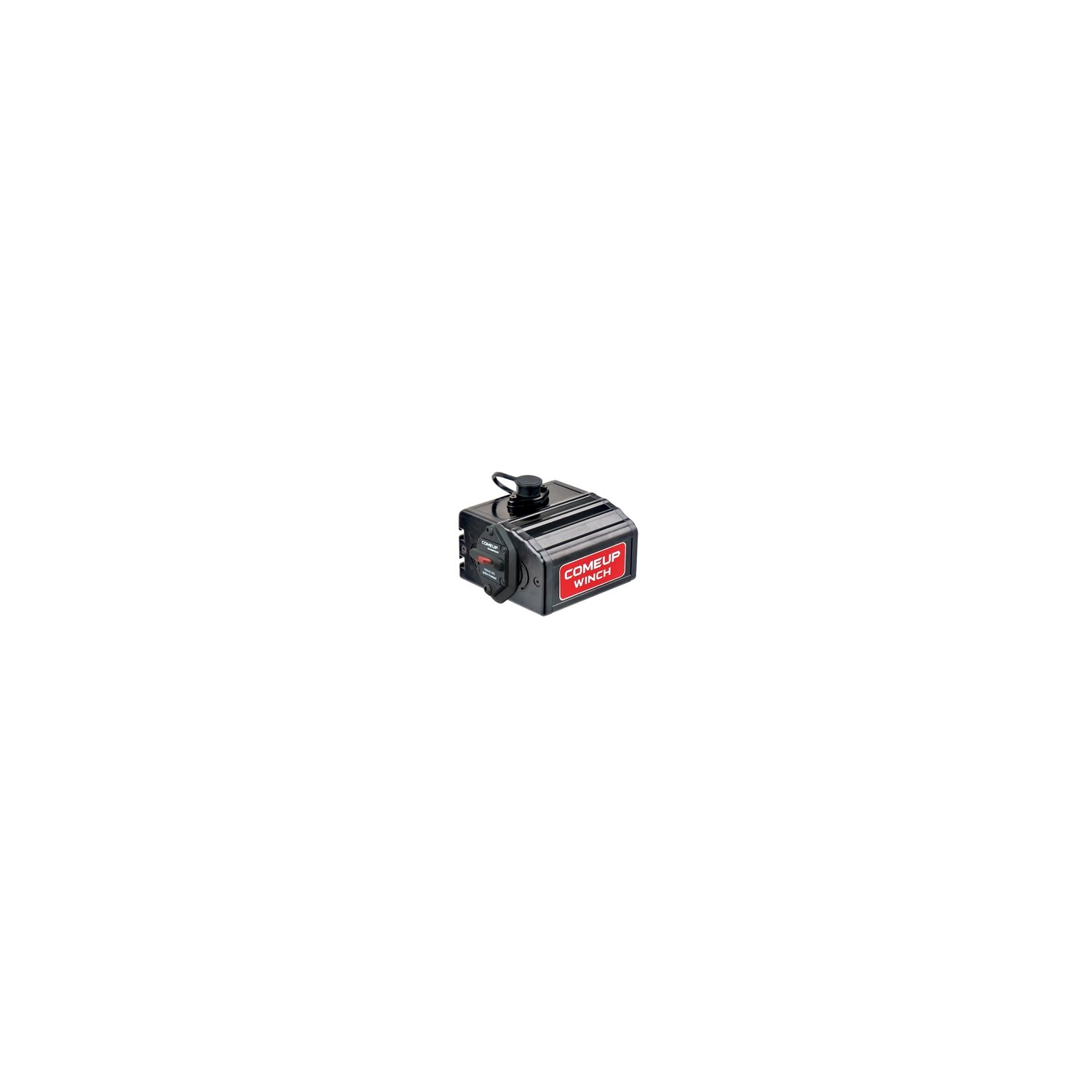

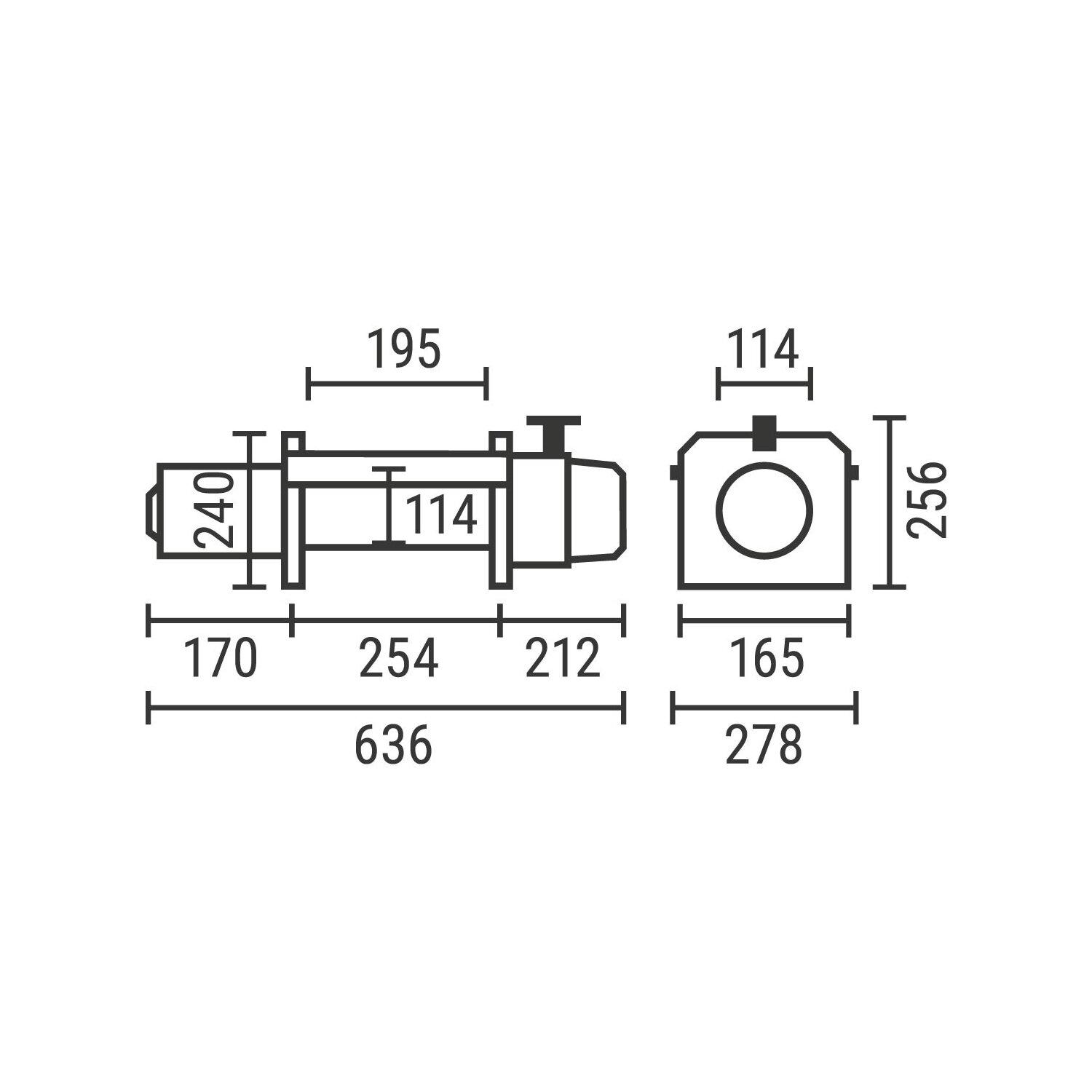

Specification/Part Numbers Part number: PN 851212 (12V) / PN 851224 (24V) Rated line pull: 5,440 kg / 12,000 lb (SAE J706 rating) 5,100 kg (EN 14492-1 rating) Motor: 4,180 w / 5.6 hp 12V series wound 2,690 w / 3.6 hp 24V series wound Gear train: 3-stage planetary 315:1 Clutch (freespooling): Rotating ring gear Brake (outside the drum): Automatic, full load CBS (Cone Brake Structure) Winch construction: Aluminum die cast housings with steel drum Drum size: 114 x 195.5 mm (4.5” x 7.7") Rotation of winch: Wire rope shall be under-wound orientation only Control: Waterproof remote with thermometric indicator LED w/ 5 m (17') cord Mounting bolts pattern: 254 x 114 mm (10” x 4.5”) 254 x 165 mm (10" x 6.5") Wire rope recommended: * 12 mm x 21.4 m, 1,960 N/mm2 grade with a minimum breaking strength of 100.5 kN required for EN 14492-1 rating. * 1/2" x 100', EIPS grade with a minimum breaking strength of 22,552 lbf required for SAE J706 rating Winch weight (including rope) : 47 kg / 104 lb Gross weight : 61 kg / 134 lb Box dimension, (L x D x H) : 695 x 313 x 473 mm ( 27.3" x 12.3" x 18.6") Compliant with EN 14492-1 requirements for vehicle recovery winch: * The working coefficient for the first rope layer on the drum shall be at least 2. * The D/d ratio to the center of the rope shall be at least 10 for the drum. * Drum freeboard shall be at least 1.5 x rope diameter Line Speed and Amp. Draw (1st layer of wire rope on the drum): Line Pull, kg / lb Line Speed, mpm / fpm Amp. Draw, A 12V 24V No Load 10 / 32.8 40 35 1,814 / 4,000 4.4 / 14.4 140 110 3,630 / 8,000 3.5 / 11.5 280 210 4,535 / 10,000 1.5 / 5 350 260 5,440 / 12,000 1.3 / 4.3 420 310 Line Pull and Rope Capacity: Layer of Rope Pull by Layer, kg / lb Total Rope on the Drum, m / ft 1st 5,440 / 12,000 5.9 / 19.4 2nd 4,534 / 9,996 13 / 42.7 3rd 3,885 / 8,565 21.4 / 70 4th 3,399 / 7,494 30.5 / 100 Warning * The winch is not intended to be used in any manner for the movement or lifting of personnel. * The rated line pull shown is based on the first layer of rope on the drum. * The rope winding on the drum shall remain 5 wraps from the drum. Warranty Each new winch is guaranteed against defects in workmanship and material defects for a period of twelve months from date of purchase. Dimension, mm/in: 10 equally positioned pin holes ensure seamless clutch transmission and make it easily rotate by 36° increments. Accessory: Standard Accessories Option Accessory Detachable control box Remote control w/5 m (17’) cord 179 mm throat roller fairlead Cable tensioner Snatch block Winch accessory kit
