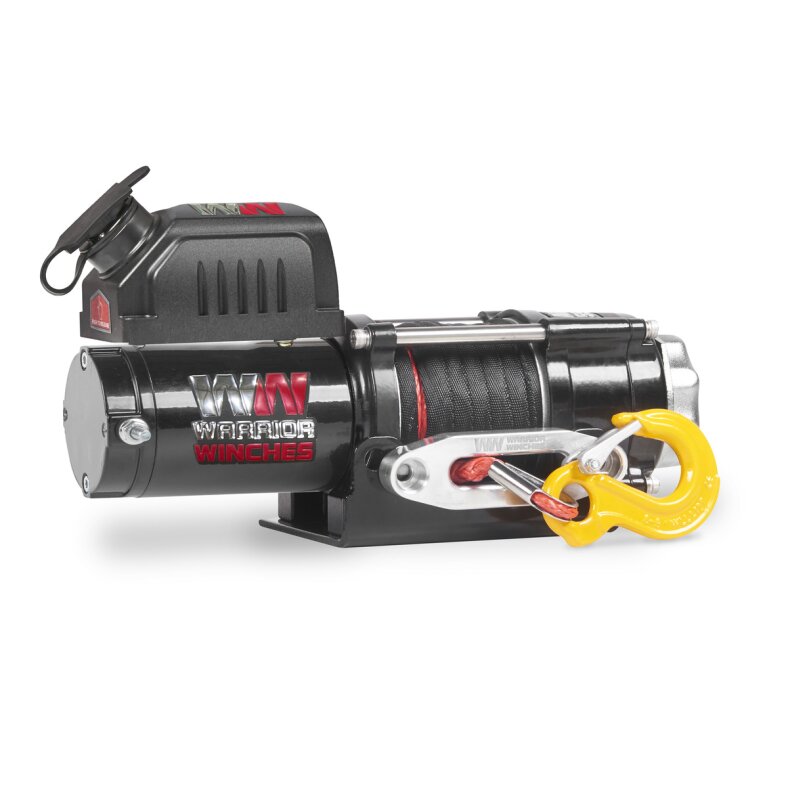

Bootswinde Elektrisch Seilwinde Boot Trailer Anhänger Warrior NINJA 3500LB 1,6 t 12 V Kunststoffseil

Item number: WBW35SPA12

Produktabmessungen: 11.3x34.6x18.8 cm (BxLxH)
Produktgewicht: 9,00 Kg

Category: Electric winches


209,00 €

including 19% VAT. , plus shipping (Paket)

Shipping time: 1 - 2 workdays

piece


Unser für Sie empfohlenes Bundle:

Bootswinde Elektrisch Seilwinde Boot Trailer Anhänger Warrior NINJA 3500LB 1,6 t 12 V Kunststoffseil
WARRIOR Trident Funk Fernbedienung 4-Pin 12V/24V
Winch cover Quad/ATV Warrior logo black neoprene with elastic rubber band
+ 209,00 €
+ 39,90 €
+ 19,90 €
Gesamtpreis 268,80 € *

Outstanding utility winch. The Warrior C3500A with Armortek Synthetic Rope. A huge 1.95 HP motor, heavy duty clutch, heavy duty steel gearing and heavy duty waterproof contactors ensure the ultimate in performance and reliability. Complete with mount plate for flat bed mounting or alternatively can be fitted to portable tow ball attachment.

Standard Accessories:

  • Line Pull: 3,500lb (1,588kg)
  • Cable: 5m Length Ø5mm armortek Synthetic Rope
  • Motor: efficient 1.95 PS/1.37 kw 12 V
    HD waterproof connectors
    Power in and Power out
  • Gear Ratio: 170:1
  • Bremse: dynamic

Outstanding Features:

  • Remote Handset: included (3m cable length)
  • Fairlead: 4-Way-Rollerfairlead
  • Pulley Block: 3t
  • Mounting Hardware: included (for standard mounting)
  • HD Batterie Leads: Length 1.5 m
  • Manual
  • Mounting Plate: included

Further Information:

  • Dimensions (L x B x H): 348mm  x 116mm x 165mm
  • Drum Size: 37 x 80mm
  • Mounting Pattern: 79,5mm
  • Weight: 9kg


Layer of Line Pull
Wire Rope lbs/kg
1 3500/1588
2 2789/1265
3 2319/1052
4 1984/900
5 1733/786









Line Pull Line Speed Amp Draw (A)
lbs/kg ft/min m/min 12 V
0 10.5 3.2 45
1000/454 8.9 2.7 75
2000/907 7.5 2.3 130
3500/1588 4.6 1.4 200

Shipping weight: 12,00 Kg
Product weight: 9,00 Kg
