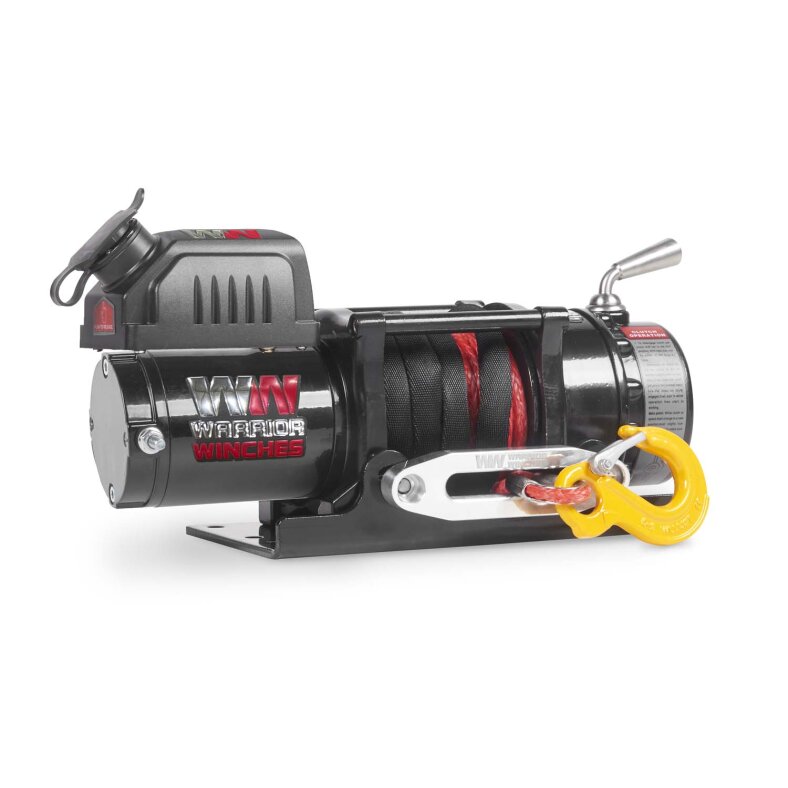

ATV/UTV Quad Electric winch Warrior NINJA 4500LB 2t 24V synthetic rope

ATV/UTV Quad Electric winch Warrior NINJA 4500LB 2t 24V synthetic rope

SKU: 45SPA24
GTIN: 5060423981596
Category: Winches

Schutzklasse: IP66

329,99 €

incl. 19% VAT , plus

Available immediately
Delivery time: 1 - 4 Workdays (DE - int. shipments may differ)

piece

Latest addition to the Warrior Range. High Quality three stage planetary gearing ensure this is one of the quietest and smoothest winches on the market. The silky smooth performance and the full load holding brake make the C4500EWX the perfect solution for high spec appliations.

Outstanding Features:

Rated Line Pull: 4,500lb (2,043kg)

Rope: 14,5m Length Ø6mm Syntetic Rope with Hook

Motor: 1.95hp/1.37kw Fully Sealed Permanent Magnet Motor

Heavy Duty Waterproof Contactors

Double Sealed Drum

Gear: 3-stage Planetary Metal Drivetrain

Gear Ratio: 172:1

Brake: automatic Mechanical Brake

Lifetime Mechanical Warranty

3 Year Electric Warranty

Standard Accessories:

10ft Remote Handset

Aluminum-Fairlead

Flat Mount Plate

Hook  3/8

Manual

Mounting Plate: included

Further Information:

Dimensions (L x B x H): 360mm x 126mm x 165mm

Mounting Pattern: 129mm x 96mm

App. Weight: 13kg

Layer of Line Pull

Synth. Rope lbs/kg

1 4500/2043

2 3642/1652

3 3060/1388

Line Pull Line Speed Amp Draw

lbs/kg ft/min m/min 12 V

0 11.6 3.6 20

1500/680 9.2 2.8 70

2500/1134 7.8 2.4 100

3500/1587 6.6 2.0 140

Voltage:	24 V
Line Pull:	1,1 - 2 t
Cable/Rope Length:	1 - 15 m
Cable/Rope Type:	Synthetic Rope
Price:	200 - 399 EUR
Brand:	Warrior®
Application:	Private Off-Road
Vehicle Type:	ATV/Quad Others
Drive Type:	electric
Special Features:	weatherproof
Shipping weight:	12,00 kg
Item weight:	11,00 kg
Dimensions ( Length × Width × Height ):	37,80 × 12,60 × 20,00 cm
